OLIEKIJKGLAS 180° MESSING 743.3-18-G3/4-A GANTER

Product description:

Specification:

• Types
  • Type A: with contrast screen
  • Type B: without contrast screen
• Body
• Brass
• CuZn40Pb2
• Contrast screen
• Technopolymer (Polysulfon)
  • Temperature resistant up to 180 °C
  • Sight glass ESG-glass
  • Sealing ring rubber FPM (Viton)
• Identification by not black finish of the sealing ring

Information

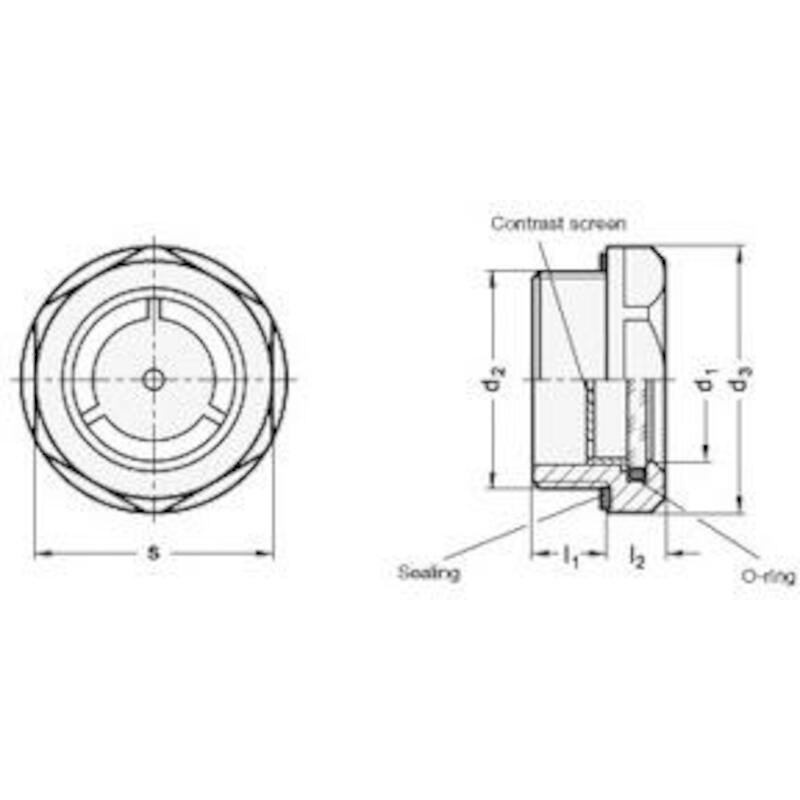

• Oil level sight glasses GN 743.3 offer genuine glass of high stability and scratch proof. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
• The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.
• The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.
• Oil level sight glasses GN 743.3 can be used on pressurised oil tanks.
