OLIEKIJKGLAS 180° ALU 743.1-11-G3/8-A GANTER

Product description:

Specification:

• Types
  • Type A: with contrast screen, blank
  • Type AS: with contrast screen, black anodized
  • Type B: without contrast screen, blank
  • Type BS: without contrast screen, black anodized
• Body
• Aluminium
  • Type A and B: fine turned, blank
  • Type AS and BS: fine turned, black anodized

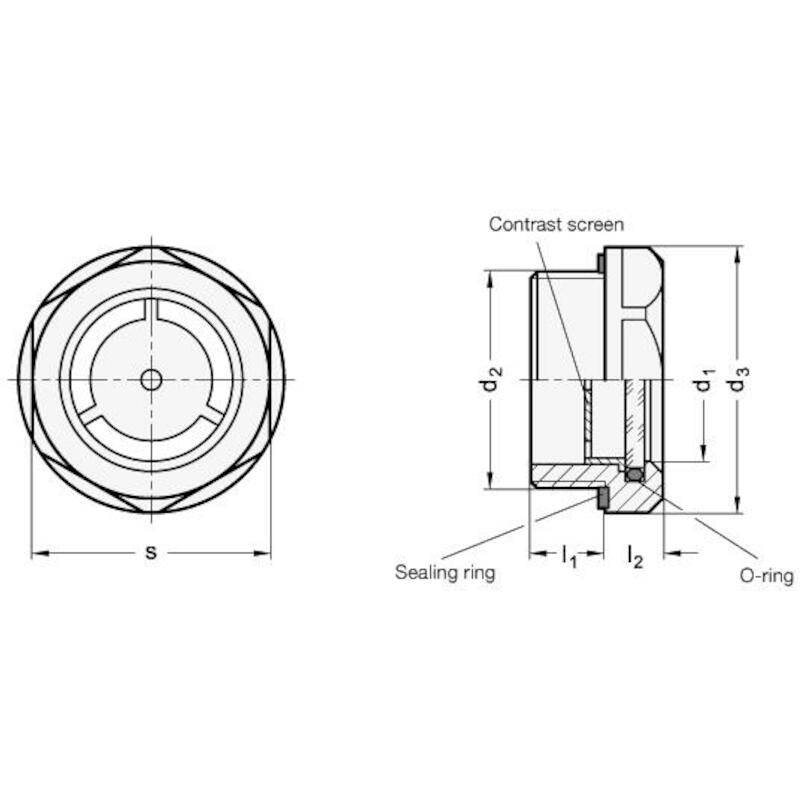

• Contrast screen
• Technopolymer (Polysulfon)
  • Temperature resistant up to 180 °C
  • Sight glass ESG-glass
  • Sealing ring rubber FPM (Viton)
• Identification by not black finish of the sealing ring

Information

• Oil level sight glasses GN 743.1 offer genuine glass of high stability and scratch proof.
• The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass.
• Leak tightness is therefore not affected by axial pressures.
• The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.
• The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.
• Oil level sight glasses GN 743.1 can be used on pressurised oil tanks.
