WERKBLADSJABLOON APS 900/3 578727 FESTOOL

Product description

Precise joining.

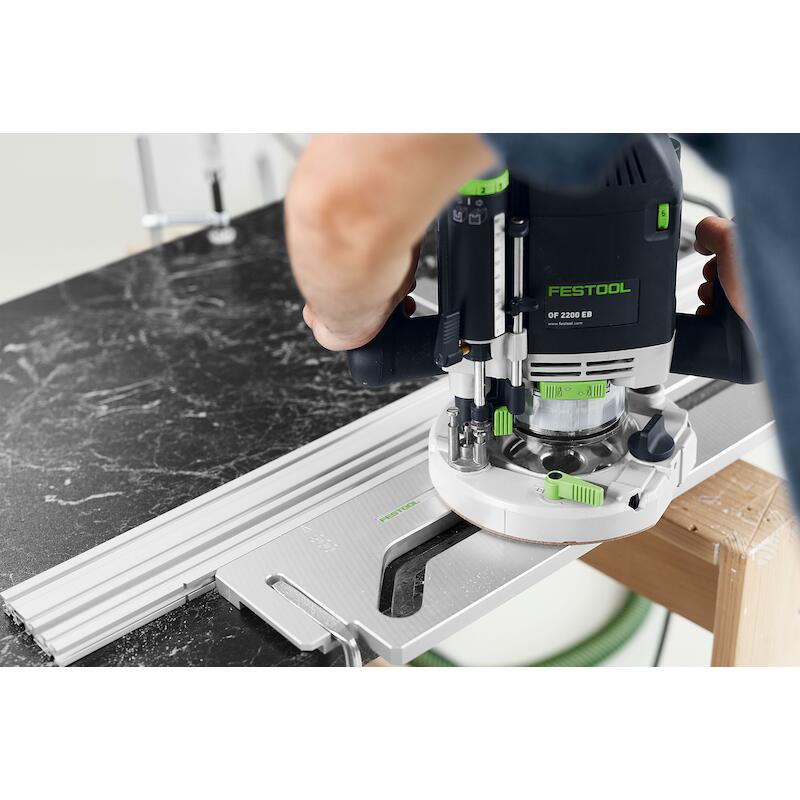

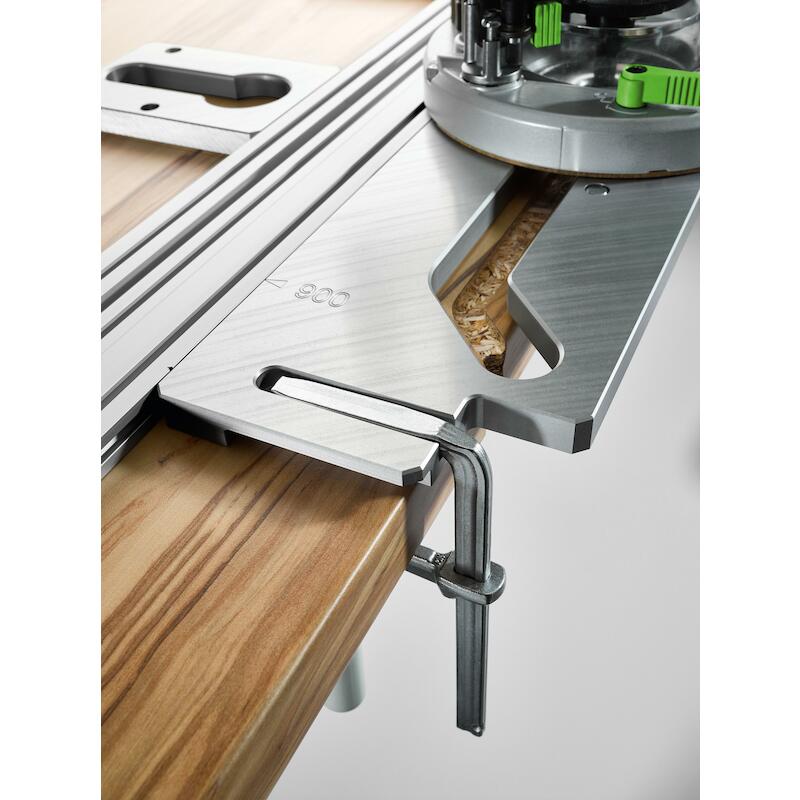

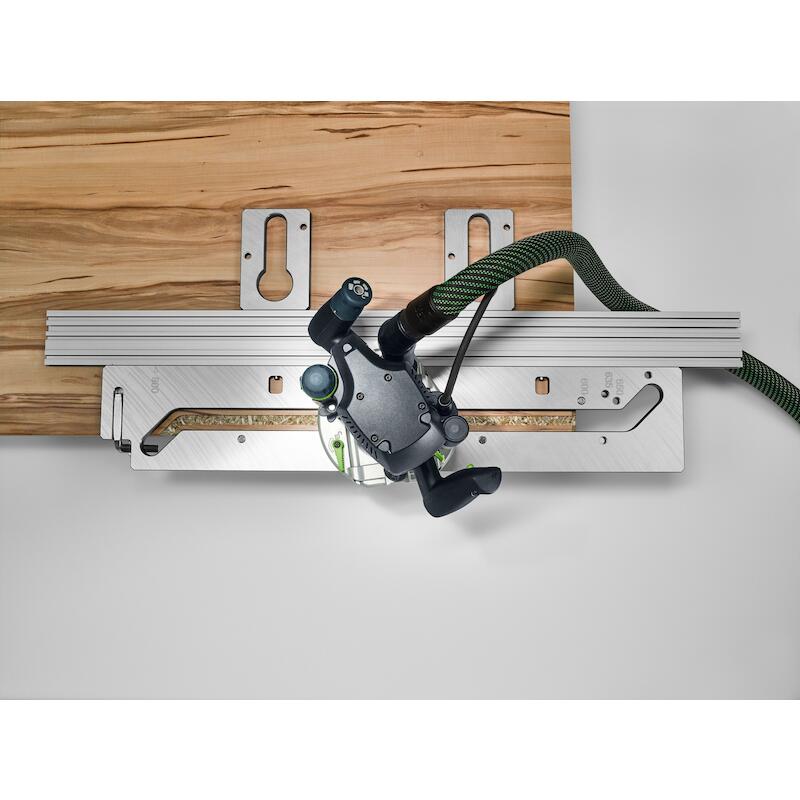

The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results - even when the router passes several times along a single groove.

• Robust routing template made from aluminium
• For corner and panel joints with a fixed stop of 600, 635, and 650 mm, or adjustable up to 900 mm panel depth.
• Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
• Panel depths greater than 900 mm also possible using extension profiles
• For groove cutters with 14 mm diameter and copying rings with 30 mm diameter, recommended for OF 2200/1400 router

Ideally suited for

• Corner connector in the worktop area
• For panel joins
• For corner and panel connectors with depths of up to 900 mm

Scope of delivery

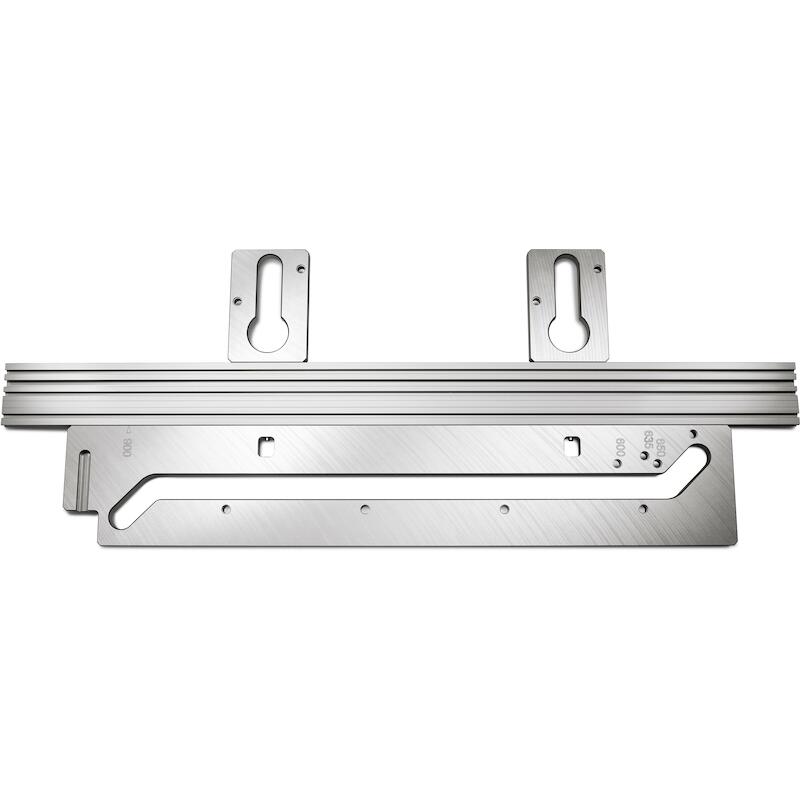

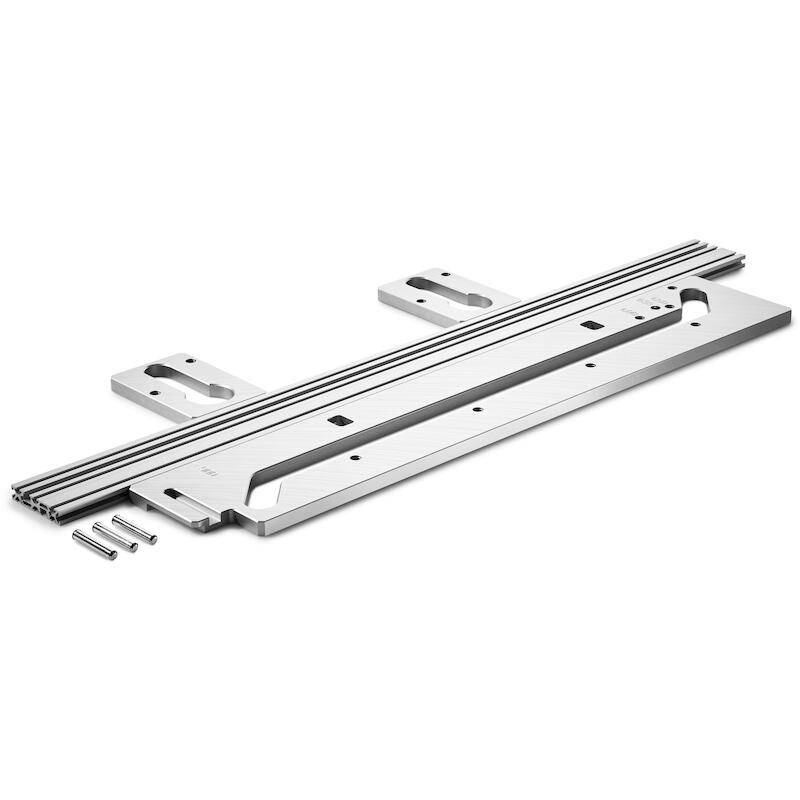

• Corner connection template
• Extension 2x profile
• Bolt
• Screwdriver
