VEREND DRUKSTUK GLAD 614-8-NI GANTER

Product description:

Specification:

• Housing and Ball Stainless Steel

  NI

  :
  • AISI 305 / 420CHousing sheet-metal
  • Ball hardened
• Housing Brass

  MS

  :
  • Turned
  • Ball Stainless Steel AISI 420C, hardened
• Housing Plastic (Polyacetal POM)

  KU

  :
  • Temperature resistant up to 50 °C
  • Ball Stainless Steel AISI 420C, hardened
• Housing and Ball Plastic (Polyacetal POM)

  KD

  :
  • Temperature resistant up to 50 °C
  • Spring
  • Stainless Steel AISI 631

Information

• Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.
• A tolerance of H7 for the location hole of d1 is recommended.

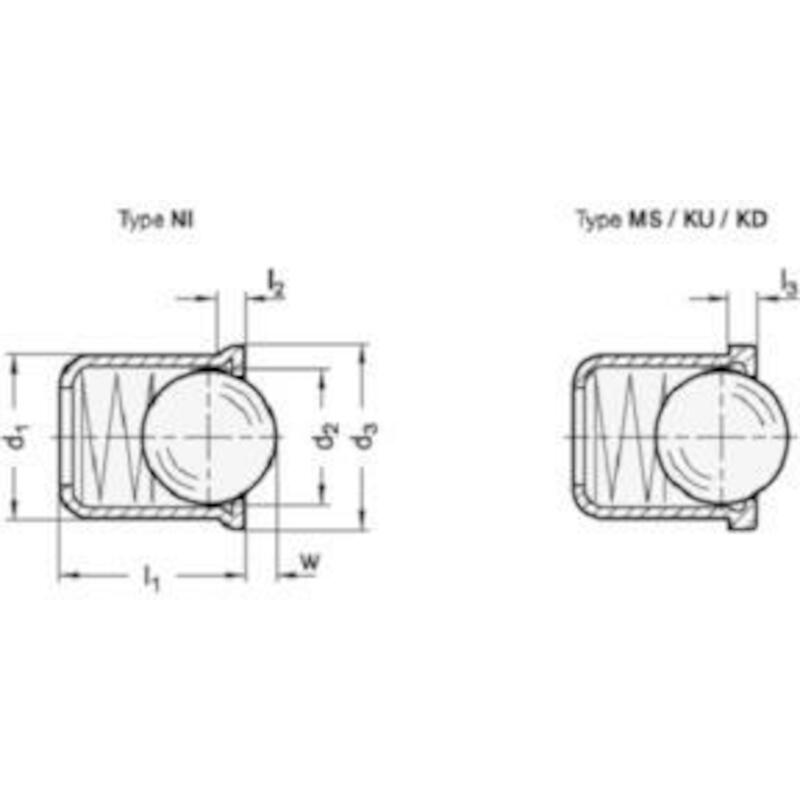

• Due to different production methods, the dimensions l2 and l3 are different.
