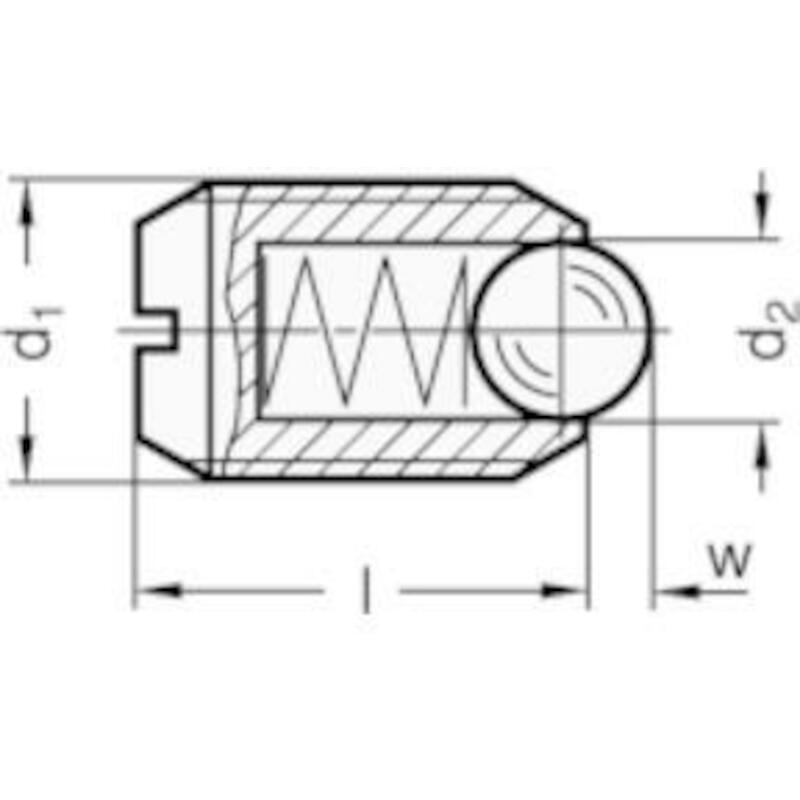

VEREND DRUKSTUK 615-M10-K GANTER
02743472
-
GANTER
A018637
M10
min (50)
EA
Sold per 50
In Stock: Available
3 day(s) lead time
Product description:
Specification:
- Types
- Type K: Steel, standard spring load
- Type KS: Steel, high spring load
- Type KN: Stainless steel, standard spring load
- Type KSN: Stainless Steel, high spring load
- Type K / KS:
- Housing Steel, blackened
- Ball Steel, 1.3505, hardened
- Type KN / KSN:
- Housing Stainless Steel AISI 303
- Ball Stainless Steel AISI 420C, hardened
- Spring
- Stainless Steel AISI 631
- Marking of Type KS / KSN:
- Housing with 2 longitudinal markings
Information
- Spring plungers GN 615 are used as detents as well as for push-on and push-off applications and ejecetors.
