VEREND DRUKSTUK 615.3-M8-K GANTER

Product description:

Specification:

• Types
  • Type K: Steel, standard spring load
  • Type KS: Steel, high spring load
  • Type KN: Stainless steel, standard spring load
  • Type KSN: Stainless Steel, high spring load
• Type K / KS:
  • Steel, blackened
  • Ball, hardened
• Type KN / KSN:
  • Stainless Steel AISI 303 / AISI 420C
  • Ball hardened
• Marking of Type KS / KSN:
• Housing with 2 longitudinal markings

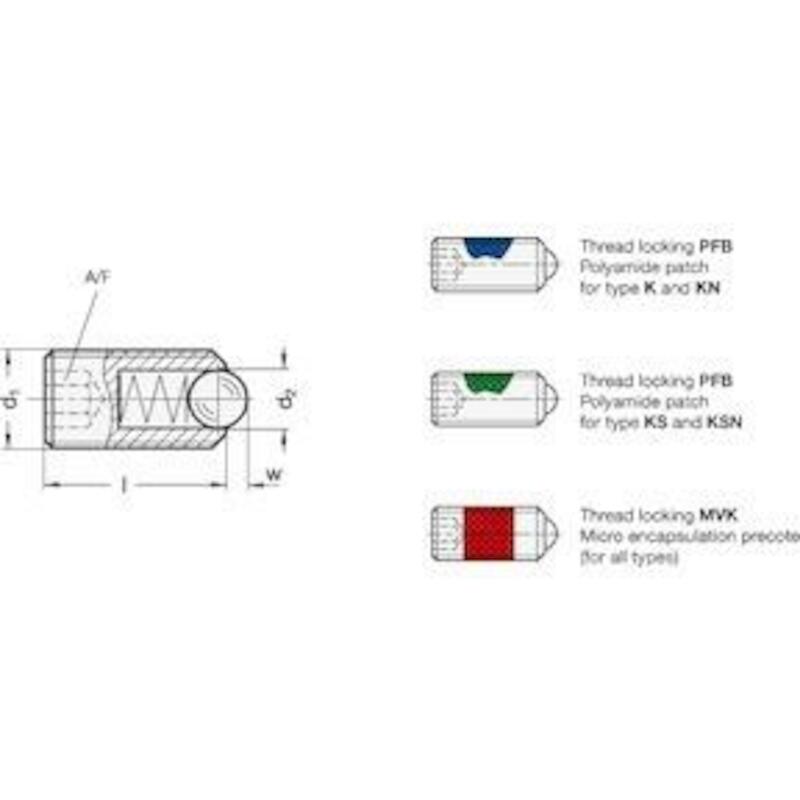

  • Thread lockings (optional)
  • Polyamide patch PFB
• Type K/KS M 3 ... M16
• Type K*/KS* M20 ... M24
• Type KN/KSN M3 ... M6
• Type KN*/KSN* M20 ... M24

Information

• The PFB patch is a jamming thread locking (Polyamide patch).
• The coating for Type K or KN (standard spring load) is indicated blue, for Type KS or KSN (high spring load) green.
• For this Type of thread locking a relatively high torque is required.
• Therefore this version with internal hexagon is more preferable than the version with slot GN 615 .
• MVK (Micro encapsulation) is a gluing thread locking (indicated red).
