UITLIJNLAMEL P-10 BISCO (300ST) LAMELLO

Product description

• Plastic slats for Clamex P and Tenso P

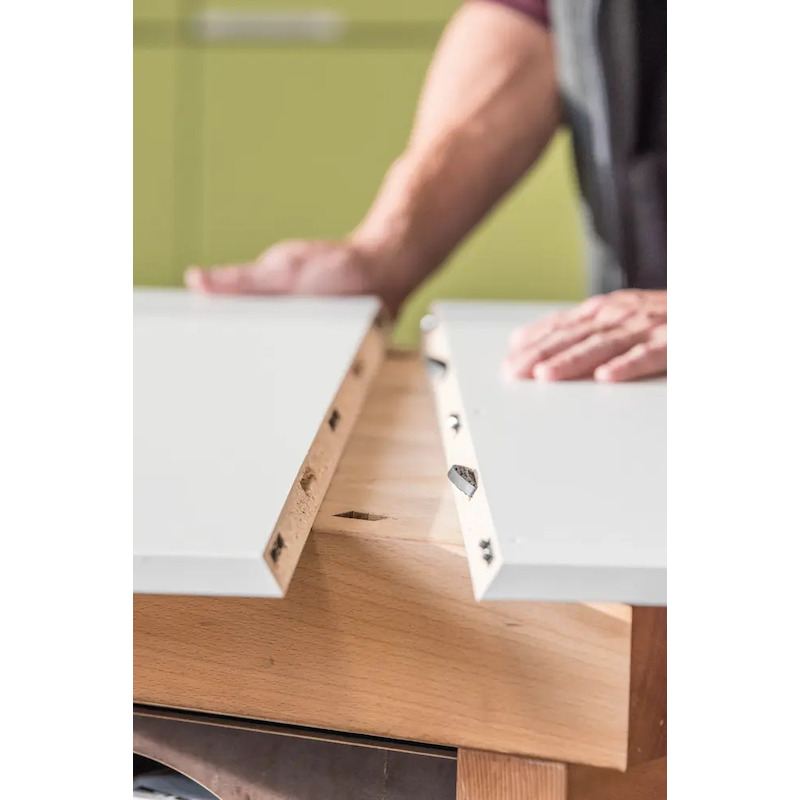

• Align furniture parts flush against each other with Clamex P
• Check furniture for quality with Bisco P before gluing with Tenso P
• All corner and mitre joints from 22.5° to 180°
• Bisco P-10 from material thickness 12 mm, Bisco P-14 from 16 mm

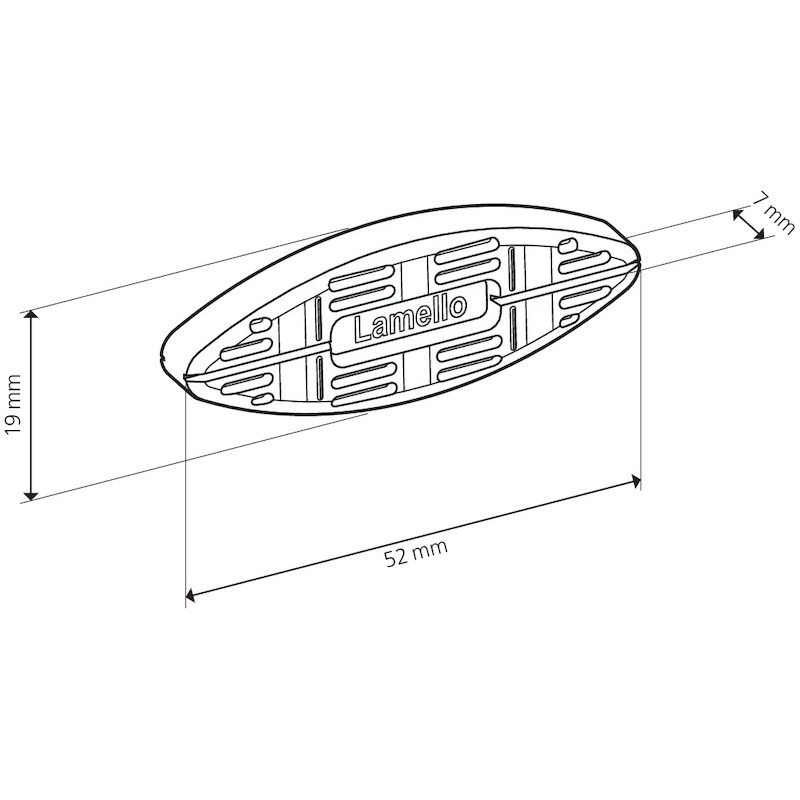

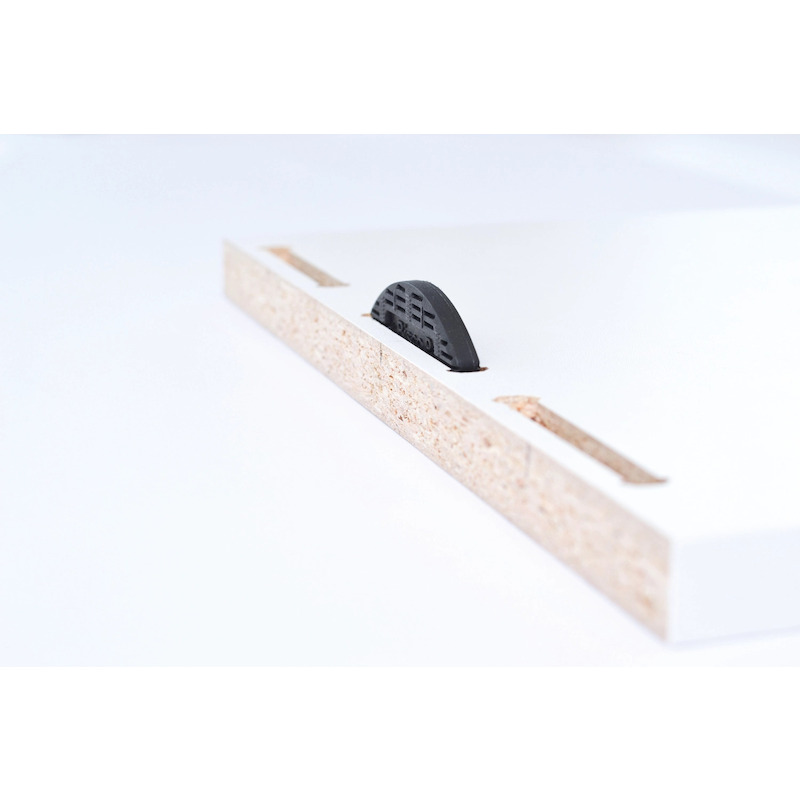

Bisco P is a plastic lamella. The alignment slat fits into the P-System groove 7 mm wide, but is not anchored together like Clamex P. Instead, it clips into the groove due to its surface structure. It can be used as a wooden slat with wood glue as a fixed joint. Bisco P is used in combination with Clamex P when only every second connector needs to exert tensioning force and between them an alignment element for joint alignment suffices as an invisible and cost-effective alternative. Another application is use as a dry joint before joining a workpiece with Tenso P and adhesive. The tensile strength of Tenso P is very high and can require a lot of force during disassembly depending on the angle of the workpieces. It is therefore advisable to check the precision of the machining operations with Bisco P. Afterwards, Bisco is simply removed from the grooves, replaced with Tenso P, adhesive is applied and the workpieces are assembled. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14, Bisco P-10 with size P-10 connectors.

Applications

• Combination with Clamex P or Tenso P in furniture construction
• Applications analogous to the original Lamello wooden slat
• Size P10: butt joints from a material thickness of 12 mm, mitre joints from a material thickness of 18 mm
• Size P14: butt joints from a material thickness of 15 mm, mitre joints from a material thickness of 18 mm

Features

• Flexible combining: In combination with Clamex or Tenso, ideal for ensuring that the furniture is properly aligned. Ideal for joints before gluing or joining
• Low milling depth: Minimum milling depth with maximum tensile strength
• Sliding tolerance in the profile groove: With the P-System, both workpieces can be aligned perfectly evenly
• Versatile: The small depth of the joiner allows mitres of 22.5 to 180°, such as for surface, corner and partition wall joints
• Flush alignment: The large sliding tolerance enables perfect flat alignment of workpieces
