TRIANGELBRUG MODULAIR 12M C500322 H=4-6M ALTREX

Modular Triangle Bridge (MTB)

• Can be erected by 2 persons
• With separate uprights or between rolling scaffolds
• Easy, fast and versatile to use
• Lightweight, easy to transport

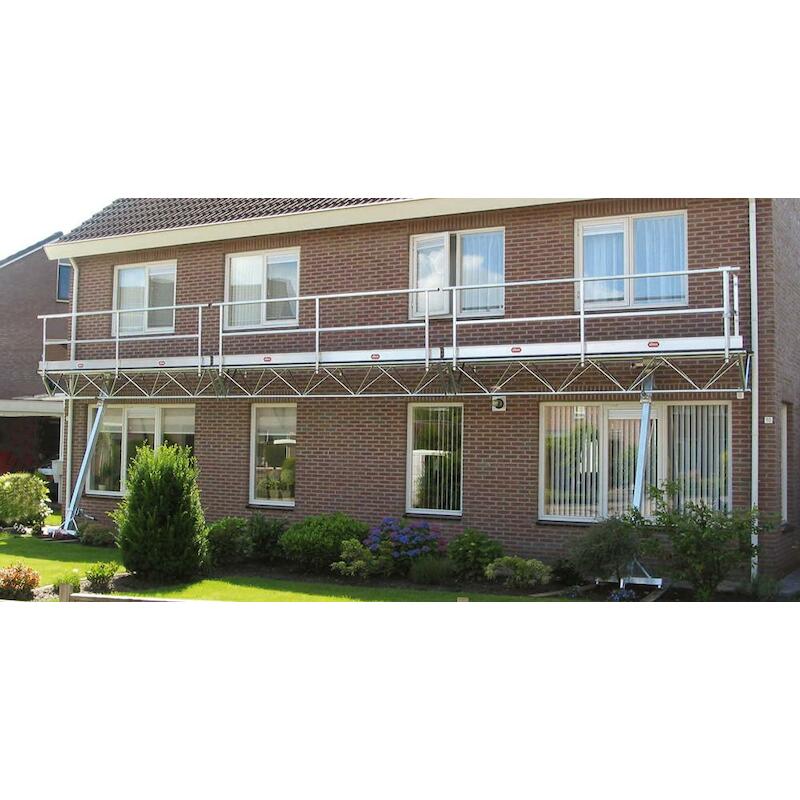

Altrex Triangle Bridge (MTB). Modular and versatile work bridge.

• With just a few actions, you assemble the modular components into a complete work bridge. From 3 to 5 metres or 4 to 6 metres platform height. This unique triangle bridge is easily assembled from the ground and raised to height with a hand winch. The Altrex Modular Triangle Bridge is the perfect work bridge for any maintenance and renovation job.
• By combining the cleverly designed trusses of 2, 3 or 4 metres in length, different lengths are possible. Moreover, the open V-shape makes the trusses stackable and therefore compact to transport. Non-slip floors and guardrail frames with toe board and knee rail ensure safe use.

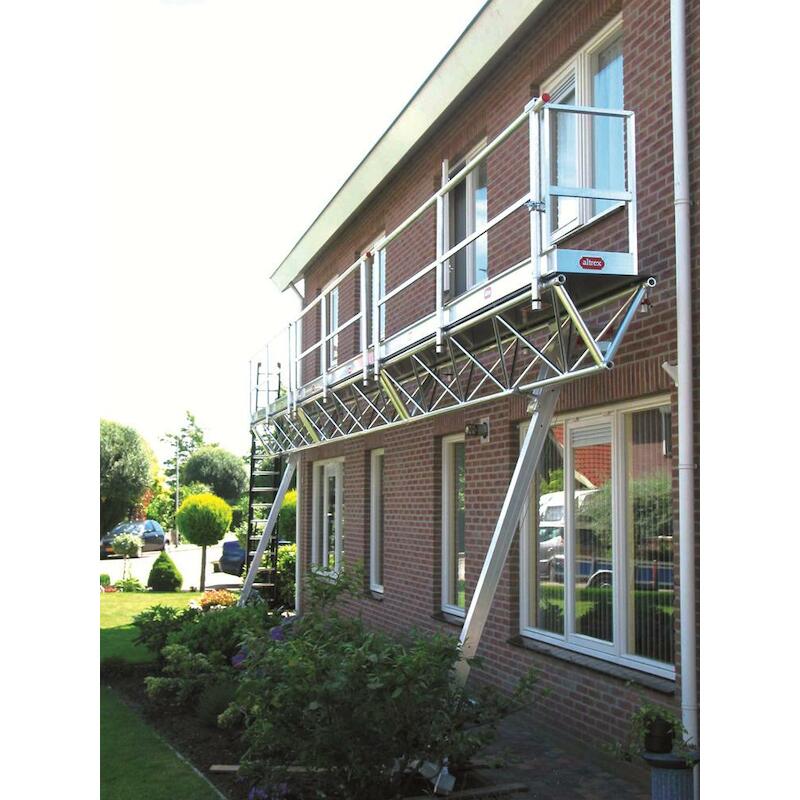

With uprights or between mobile scaffolds

• The MTB can be used on lightweight uprights. Between RS TOWER 5 scaffolds is also an option. This allows you to reach spans of up to 12 metres.

Compact and easy transport

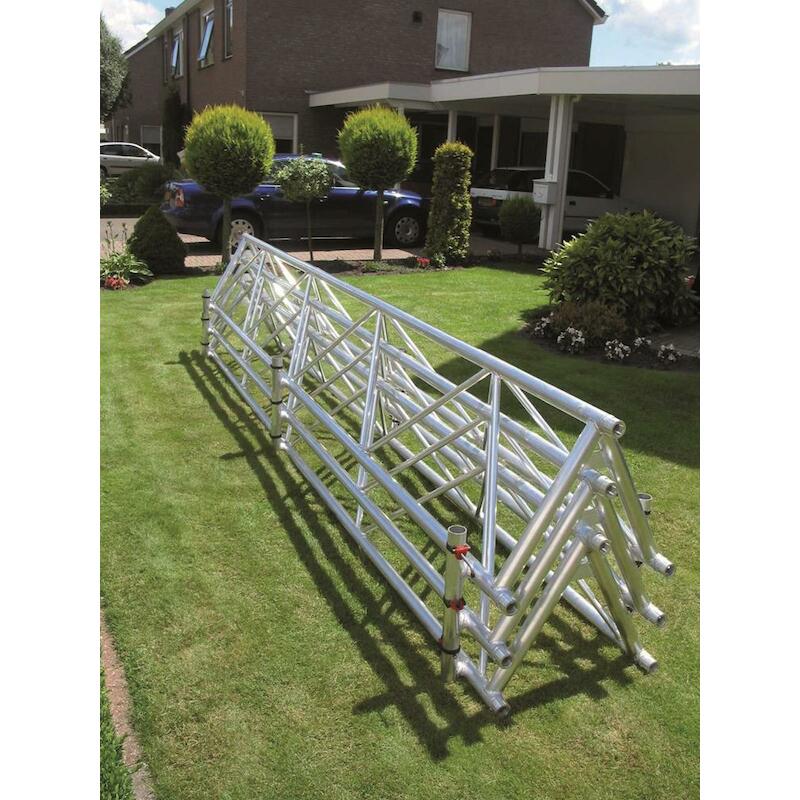

• The trusses are easy to stack thanks to the open V-shape. This way, they take up little space during transport.

Fast assembly

• Unique tapered couplers, platforms with mortises and handrail frames supplied as one unit ensure quick assembly.
