SNELBOUWANKER 10/20X96 FBNII10/20 ZN FISCHER

Product description

The cost-efficient fixing for flexible use in non-cracked concrete

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for façade sub-structures, cantilevers and ladders outside.

• The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility
• The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility
• Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment

Suitable for

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut)

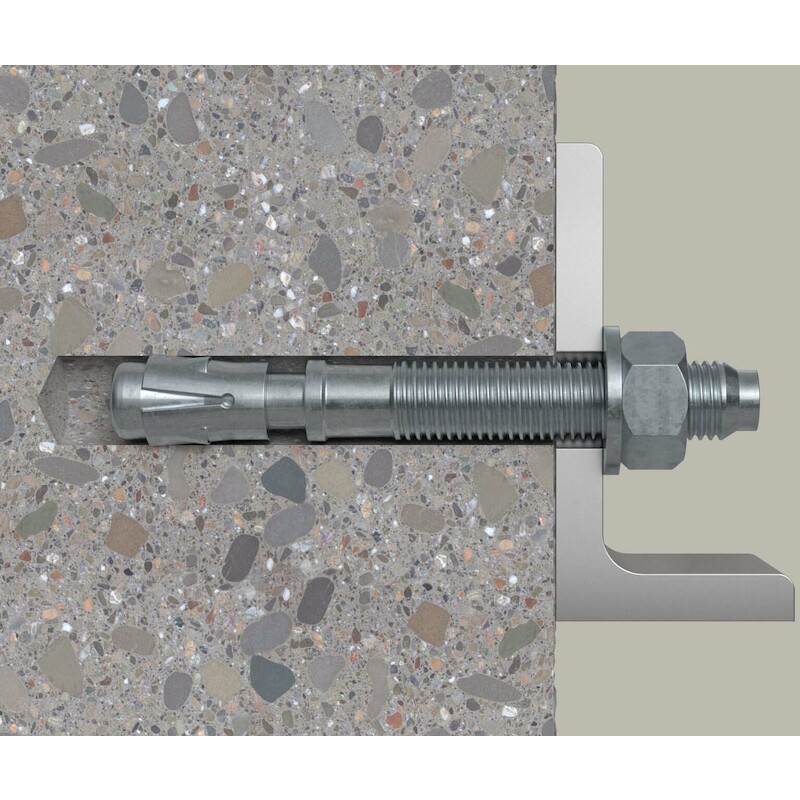

• When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall
• The head embossing offers a simple control of the anchoring
• In the case of series installation, we recommend using the FABS bolt anchor setting tool

Building materials

Approved for:

• Concrete C20/25 to C50/60, non-cracked

Also suitable for:

• Concrete C12/15
• Natural stone with dense structure

Application

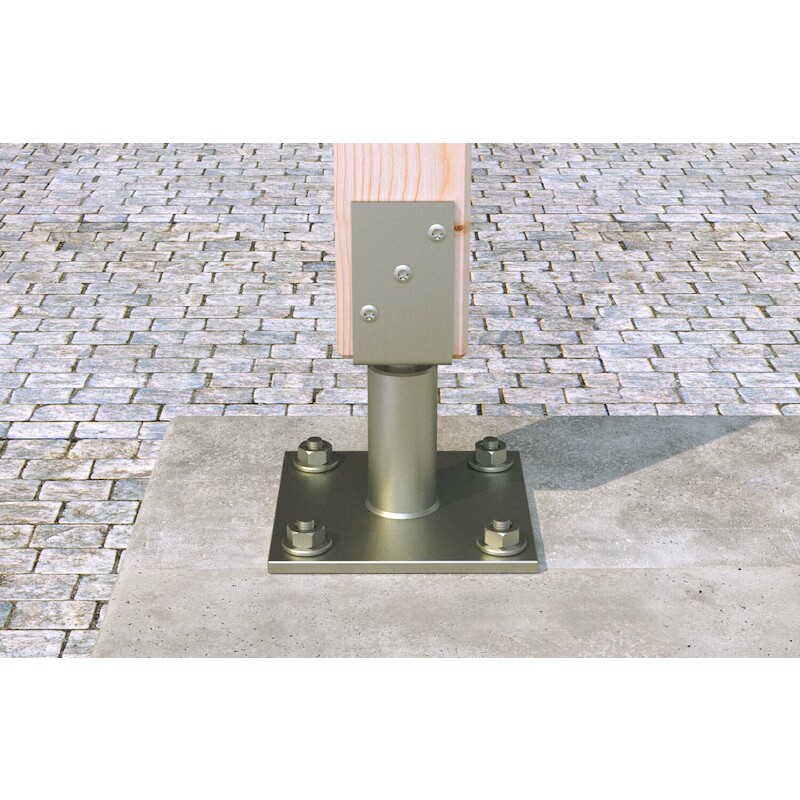

• Steel constructions
• Guard rails
• Consoles

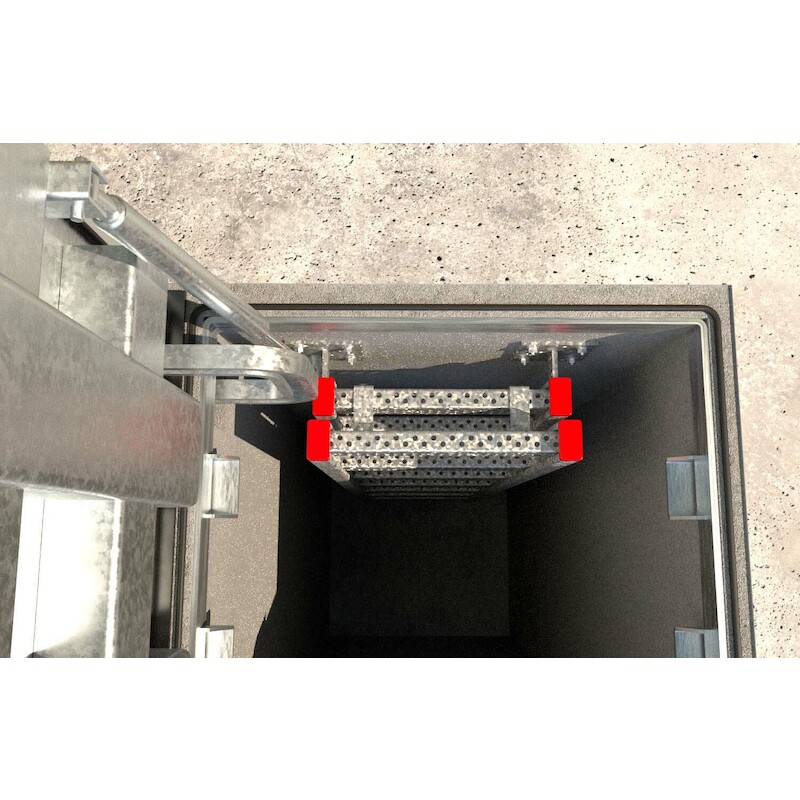

• Ladders
• Cable trays
• Machines
• Staircases
• Gates
• Façades
