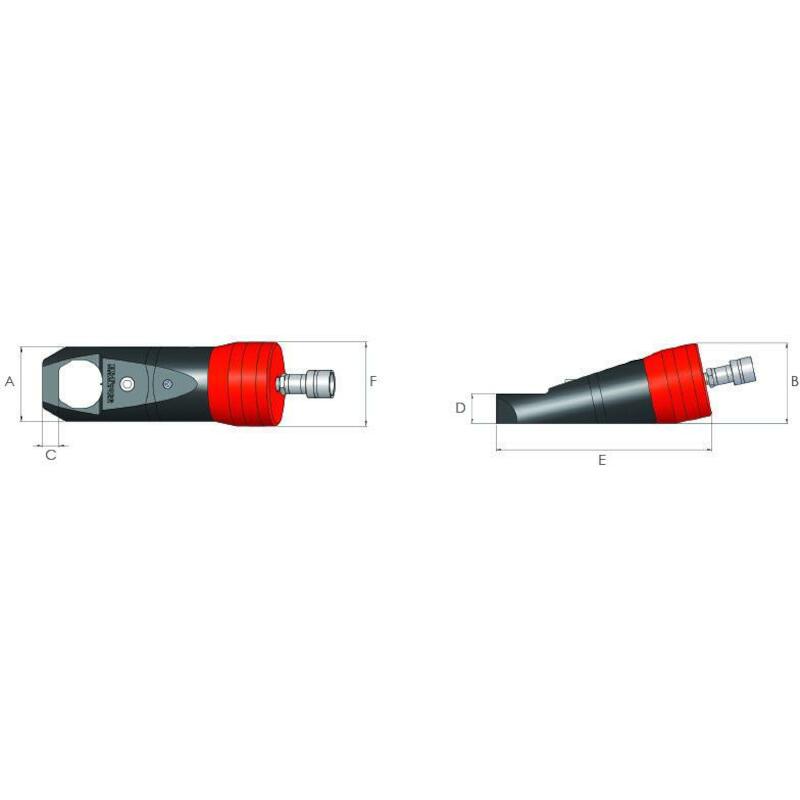

SINGLE ACTING HYDRAULIC NUT SPLITTER (50-60MM, 2" - 2.3/8") - NS206 - HI-FORCE

Product description

• Single-acting, spring return
• Angular design for increased clearance on flanges and flat surfaces
• High-strength steel construction
• Suitable for splitting nuts up to hardness HRc-44
• Suitable for use with most ANSI and API flanges
• Provides an ideal 'cold cutting' solution for applications where heating is not allowed
• A movable steel joint keeps the cutting edge of the blade parallel to the nut during the entire splitting process
• Compact and user-friendly
• Optional 360° rotatable coupling adapter for tight spaces, only available for use with NS104 and NS110 models
• Note: NS nut splitters are intended for use with heavy nuts, which has a minimum of 2/3 and maximum the total height of the blade.
• Capacity bolts: 33 - 39 mm.
• Nut capacity: 50 - 60 mm.
• Maximum working pressure: 700 bar.
• Resharpenable cutting blade: fitted as standard.
• Swivel adapter: fitted as standard.
• Weight: 15,8 Kg.
