SCHARNIER 60X60MM PA CFM.60 SH-8 ELESA

Product description:

• Material: Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
• Colour:
  • CFM: black, matt finish.
  • CFM-CLEAN: white similar to RAL 9002, matt finish.
• Rotating pin: AISI 303 stainless steel.

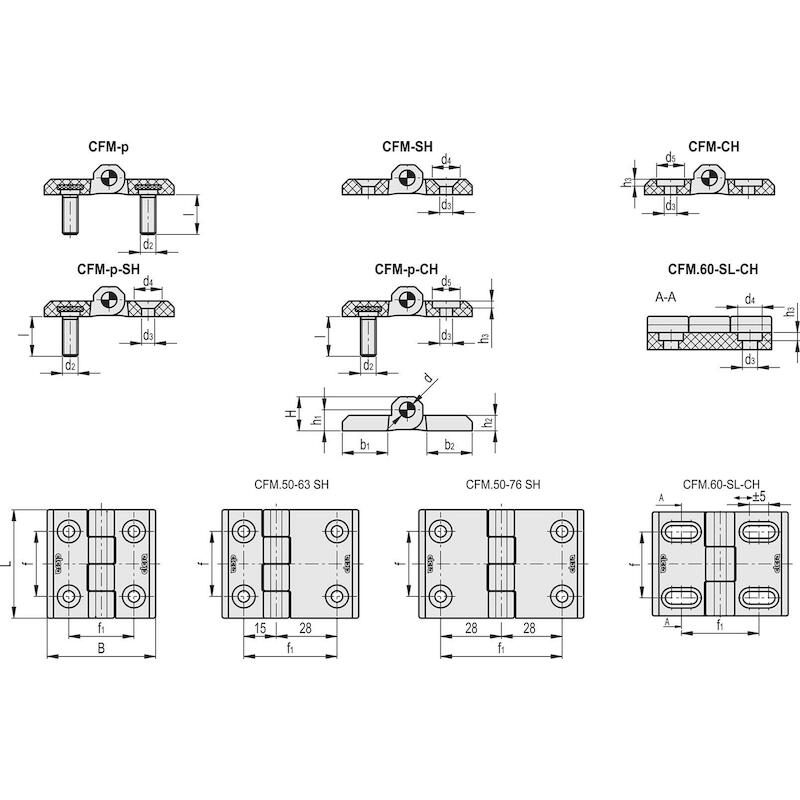

Standard executions:

• CFM-p: nickel-plated steel threaded studs.
• CFM-SH: pass-through holes for countersunk head screws.
• CFM-CH: pass-through holes for cylindrical head screws with washer type UNI 6592.CFM-p-SH: nickel-plated steel threaded studs and pass-through holes for countersunk head screws.
• CFM-p-CH: nickel-plated steel threaded studs and pass-through holes for cylindrical head screws with UNI 6592 washer.
• CFM.60-SL-CH: pass-through slotted hole for shorted cylindrical head screws UNI 9327 which allow adjustment during clamping.

General information:

• Rotation angle (approximate value):
  • Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
  • Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
