POSITIONEERHULP 97 59 65 2 KNIPEX
08093606
4003773071600
KNIPEX
97 59 65 2

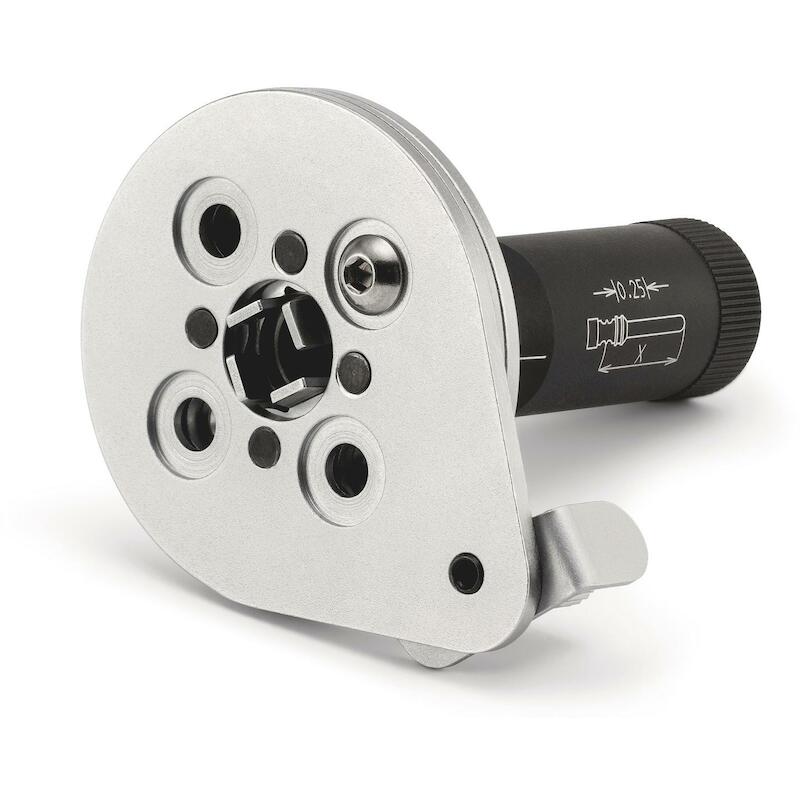

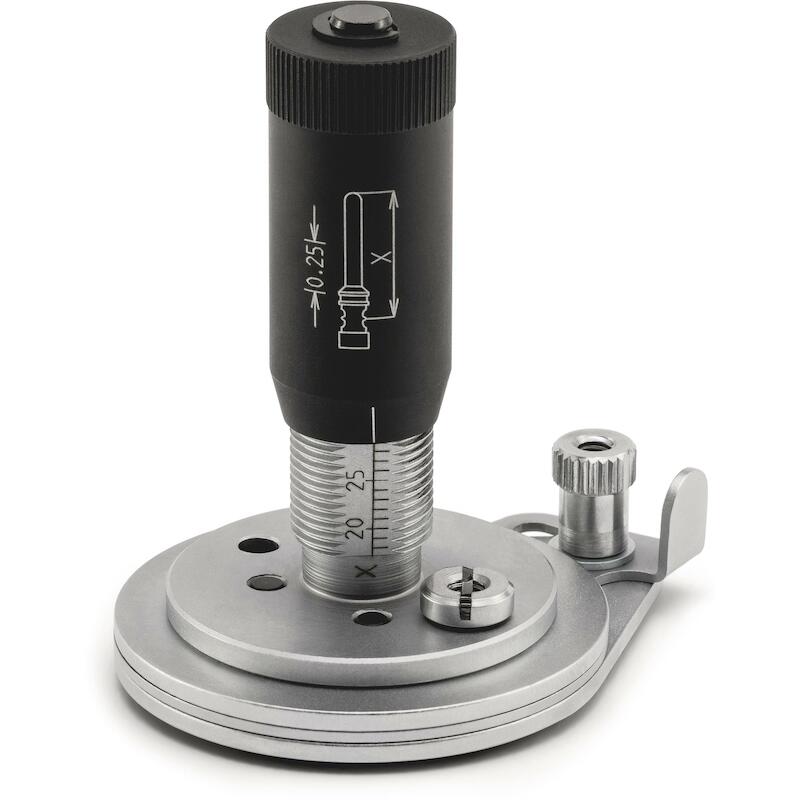

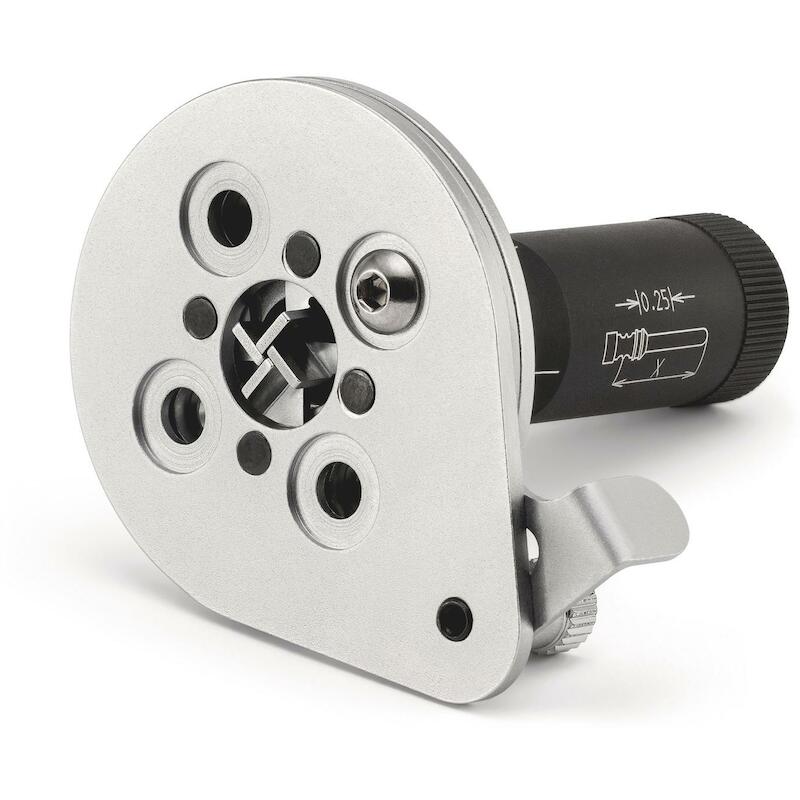

Positioning aid
97 59 65
EA
Currently out of stock
10 day(s) lead time
Product description
- Chrome vanadium electric steel in special quality, oil-hardened and refined
- Universally adjustable positioning aid for repeating precise, exact execution of turned contacts in the crimping pliers
- Diameter and depth can be individually adjusted to contacts
- Guaranteed centring of the contacts
- Ideal for small series, prototypes or contacts with different dimensions
- Simple and flexible use on the crimping pliers
- Wire cross-section: 0.14 - 6 mm²
- Contact diameter: Ø 1 - 8 mm
- Contact length: 20 - 45 mm
