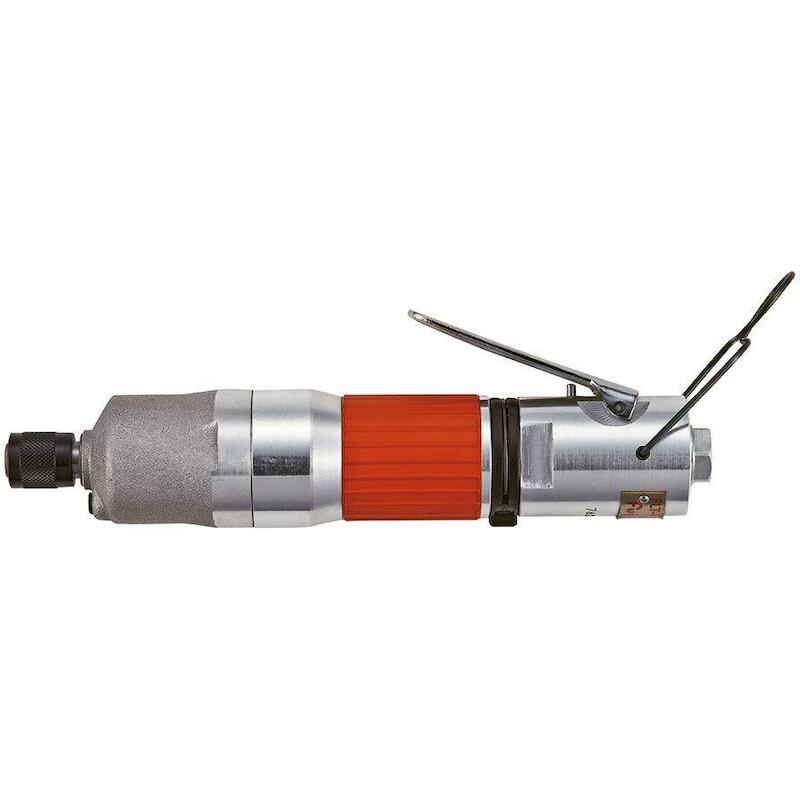

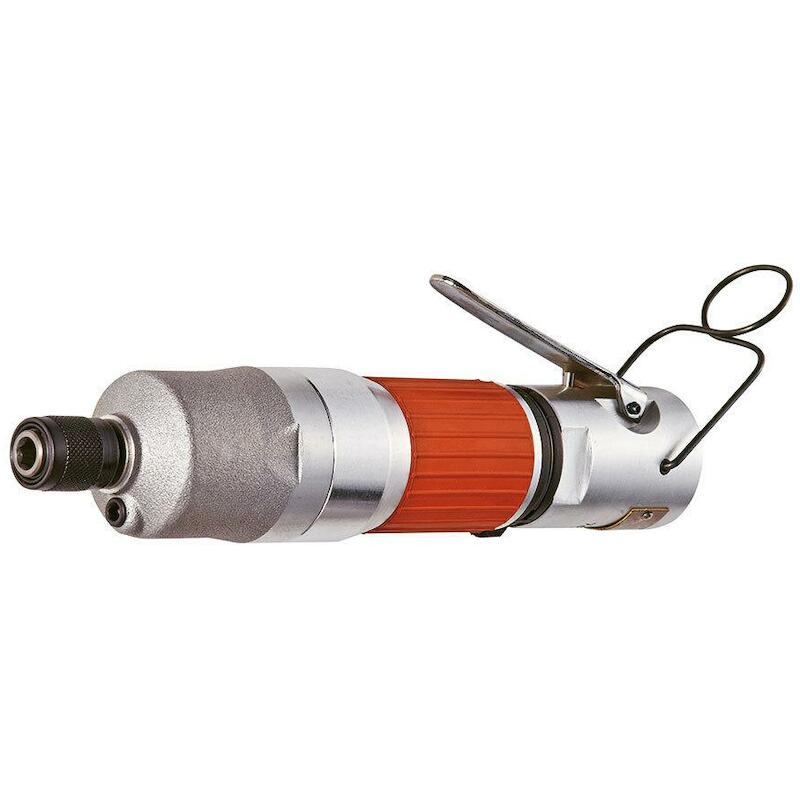

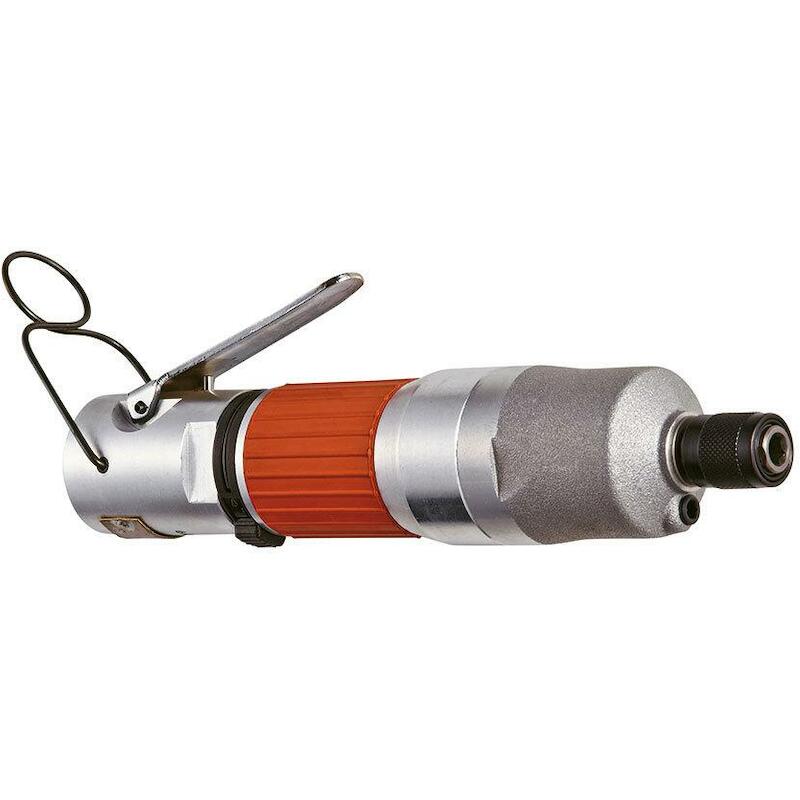

PNEUM.IMPULSSLAGSCHROEVENDR FLT-5SD-311-20NM FUJI

Product description:

PULSE MACHINE TURN-OFF FLT-5SD-3 STRAIGHT....

• - Pulse spanners give equal torque build-up without
• impact mechanism. This hydraulic pulse machine gives
• the preset torque from the 1st revolution.
• The internal cooling on the pulse mechanism gives a
• reliable and precise repetitive torque.
• - With a redesigned shut-off valve and increased acting capacity
• - This series has an improved weight/torque ratio
• compared to the previous version
• - The reduced diameter and special handle reduce
• significantly lower the vibration level.
• - clearance speed: 6,600 rpm.
• - drive square: 1/4" hex bits
• - torque range : 11 to 20 Nm
• - suitable for bolts : M6 and M8
• - smallest centre distance: 22.0 mm
• - total length: 222.0 mm
• - weight : 0,88 kg
• - design: straight in-liin
• - vibration level at operating lever : 2,10 m/sec2
• - air consumption : 5.80 l/sec
• - compressed air connection : 3/8" Bsp
• - recommended air hose : 10 mm
• - sound level : 79,8 dba
