PIJPBEUGEL 60-66MM FGRS UNIVERSAL M8 FISC

Product description

The hinged pipe clamp with the convenient and secure quick-release fastener

The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

• With sound protection test report for objectively tested functional safety
• Full, seamless diameter clamping range for fastening any size of pipe
• Quick closure with full edge for secure, convenient assembly
• Pipe clamp with embossed beads on the edge for a firm hold and simple pipe adjustment
• Combination TX-slotted thread for added assembly flexibility
• The sound insulation test report guarantees objectively tested functional safety
• The complete and gapless diameter clamping range allows the fastening of any pipe size
• The unique rapid-locking mechanism with all-round edge enables safe and convenient installation
• The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment
• The compact design of the pipe clamp allows simple, subsequent insulation
• The combination torx-slot thread of the screw increases flexibility during assembly

Application

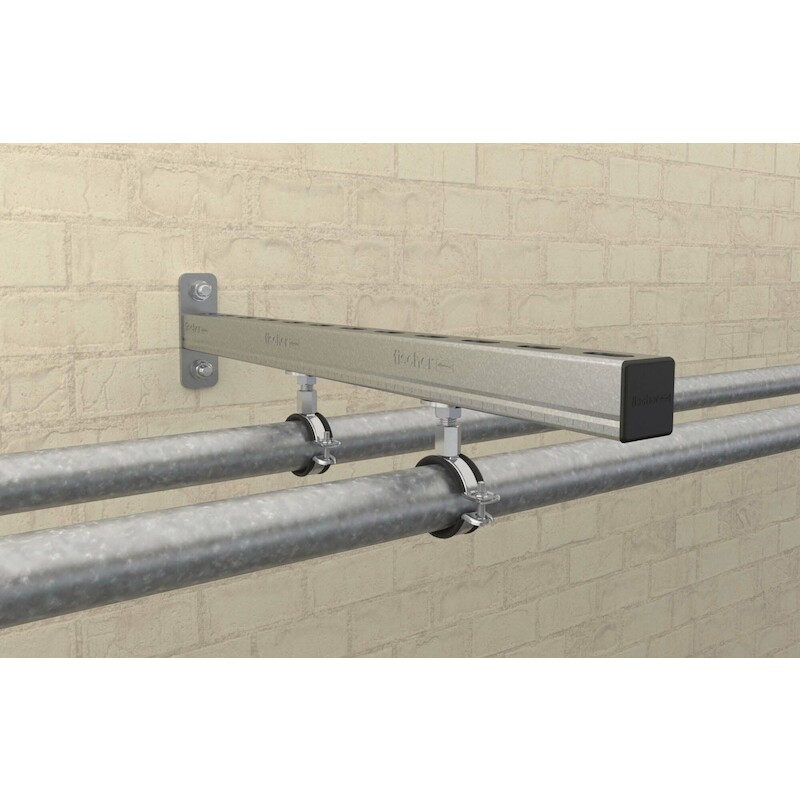

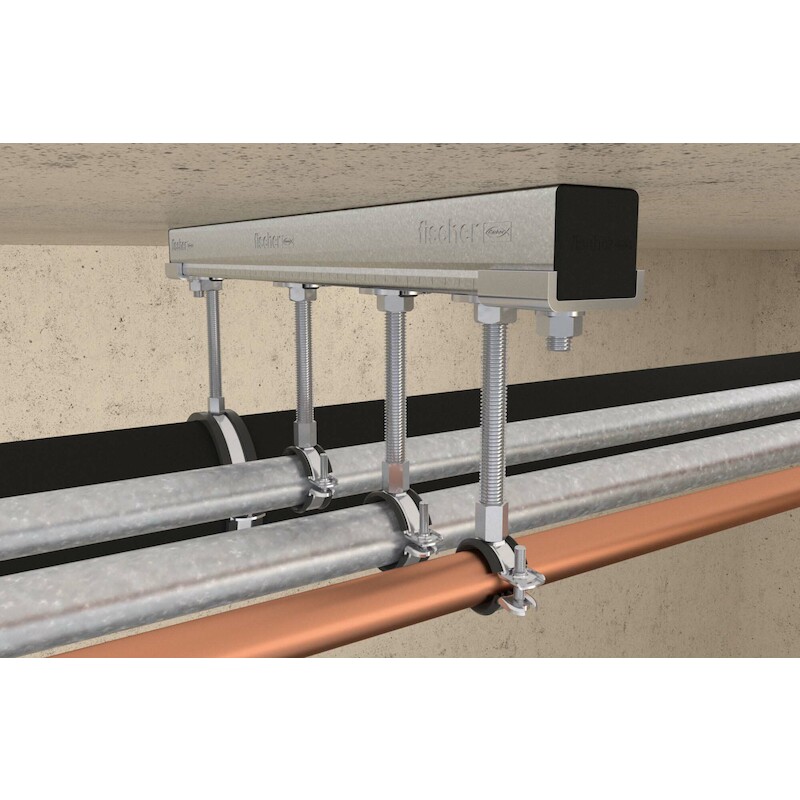

• Time-saving fixing of pipelines up to 4" with threaded rods or hanger bolts
• For use in dry interior areas
