PETROL ENGINE DRIVEN, TWO STAGE PUMP - HPP21022 - HI-FORCE
06002753
5056388008034
HI-FORCE
HPP21022
Petrol
10 l/min
700 bar
EA
Currently out of stock
9 day(s) lead time
Product description
- Petrol/hydraulic pump
- Version: single acting, 2-stage
- Valve version 2-way
- Valve function - outlet - normal charge - return
- Oil output 1st stage: 10.0 l/min up to 70 bar
- Oil output 2nd stage: 1.30 l/min
- Switchover pressure 70 bar
- Oil capacity: 25 litres
- Petrol engine power: 3.35 Kw - 5 hp ( 4 stroke )
- Max. working pressure: 700 bar

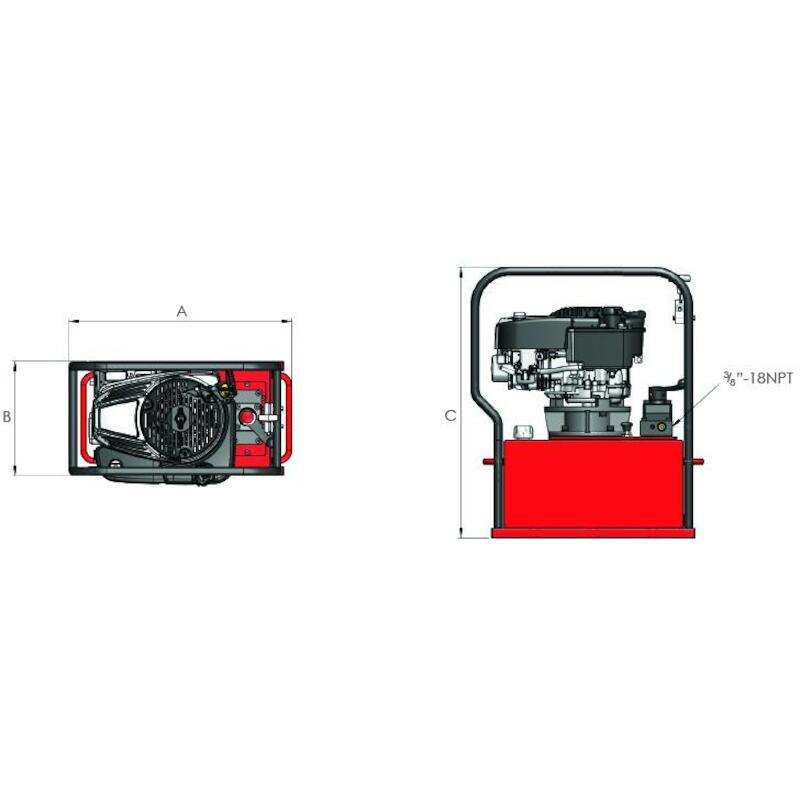

- Dimensions (LxWxH) 570 x 306 x 686 mm
- Weight: 71,0 kg
- With externally adjustable overpressure safety valve
