OLIEKIJKGLAS 100° ALU 743-14-G1/2-A GANTER

Product description:

Specification:

• Types
  • Type A: with contrast screen, blank
  • Type AS: with contrast screen, black anodized
  • Type B: without contrast screen, blank
  • Type BS: without contrast screen, black anodized
• BodyAluminiumType
• A and B: fine turned, blankType
• AS and BS: fine turned, black anodizedContrast
• screenTechnopolymer
• (Polysulfon)
  • Temperature resistant up to 100 °CSight
  • glass Float-glassSealing
  • ring rubber NBR (Perbunan)

Information

• Oil level sight glasses GN 743 offer genuine glass of high stability and scratch proof.

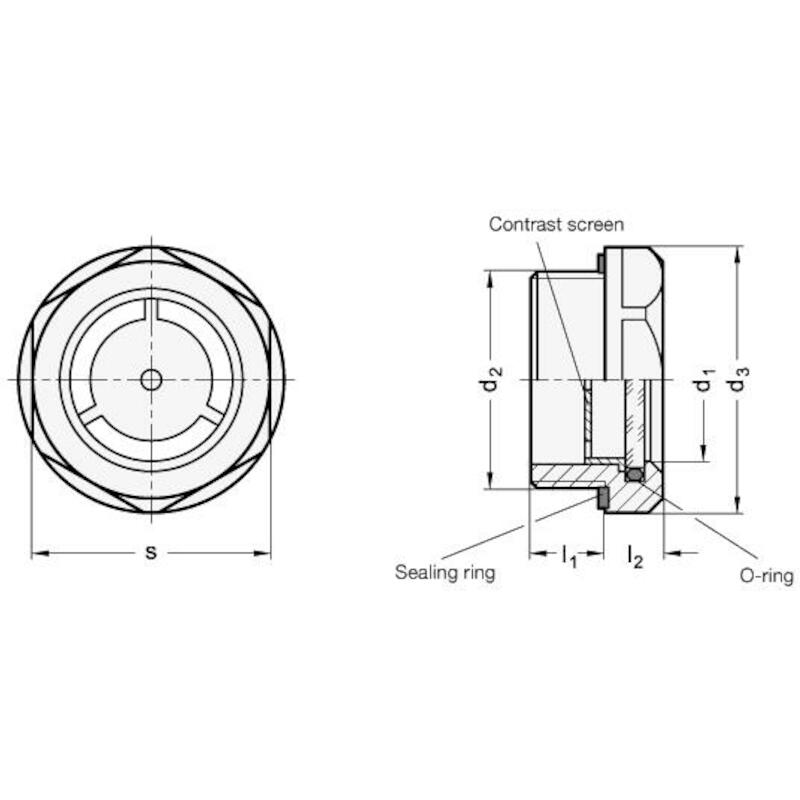

• The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass.
• Leak tightness is therefore not affected by axial pressures.
• The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.
• The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.
• Oil level sight glasses GN 743 can be used on pressurised oil tanks.
