NIVELLEERVOET+MOER INOX 31-80-M16-150-B1-UK

Product description:

Specification:

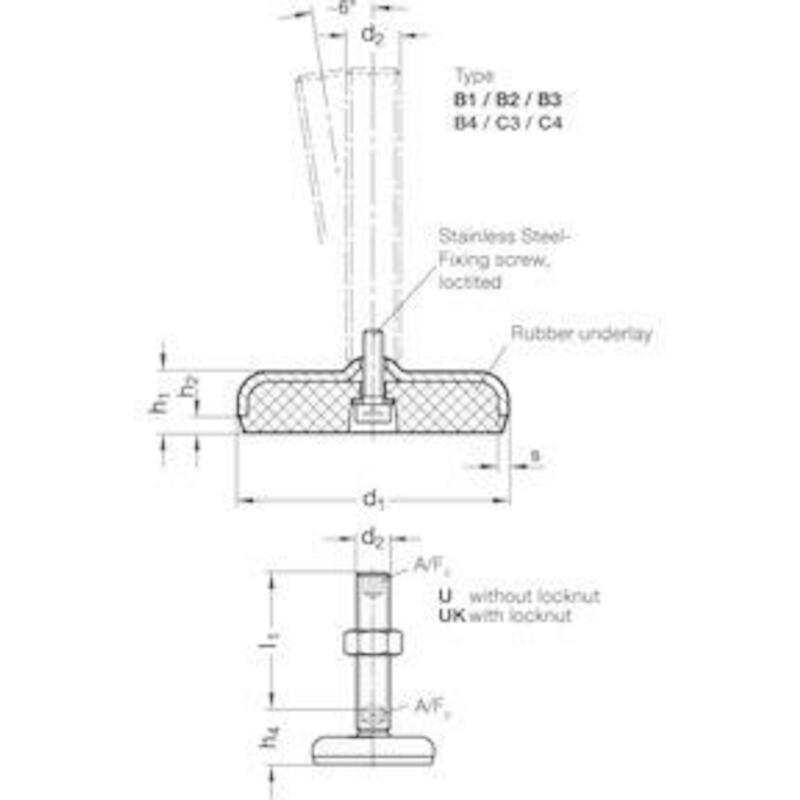

• Types (Base plate)
  • Type B1: matt shot-blasted, rubber, inlaid, black
  • Type B2: matt shot-blasted, rubber, inlaid, whiteType B3: matt shot-blasted, rubber, vulcanised, black
  • Type B4: matt shot-blasted, rubber, vulcanised, white
  • Type C3: polished, rubber, vulcanised, black
  • Type C4: polished, rubber, vulcanised, white
• Version
  • Version S: without nut, External hexagon at the bottom
  • Version SK: with nut, External hexagon at the bottom
  • Version T: without locknut, wrench flat at the bottom
  • Version TK: with locknut, wrench flat at the bottomVersion U: without locknut, internal hexagon at the top, wrench flat at the bottom
  • Version UK: with locknut, internal hexagon at the top, wrench flat at the bottom
  • Version V: without locknut, external hexagon at the top, wrench flat at the bottom
  • Version VK: with locknut, hexagon socket at the top, wrench flat at the bottom
  • Version W: with adjustable sleeve
  • Version X: external hexagon, female thread
• Base plate, sheet metal
• Stainless Steel AISI 304
• Threaded stem
• Stainless Steel AISI 303
• Hexagon nut ISO 4032
• Stainless Steel AISI 304
• Rubber underlay, inlaid
  • Black: Perbunan (NBR)80±5 Shore A
  • White: Perbunan (NBR)80±5 Shore A
• Rubber underlay, vulcanised
  • Black: Perbunan (NBR)
  • White: Perbunan (NBR)

Information

• GN 31 Stainless Steel-Levelling feet with vulcanised rubber (Type B3, B4, C3 and C4) and screw version W feature fewer dead spots due to their construction method and are also easier to clean.
• Stainless Steel-Levelling feet GN 31 will be delivered mounted and are not removable.
