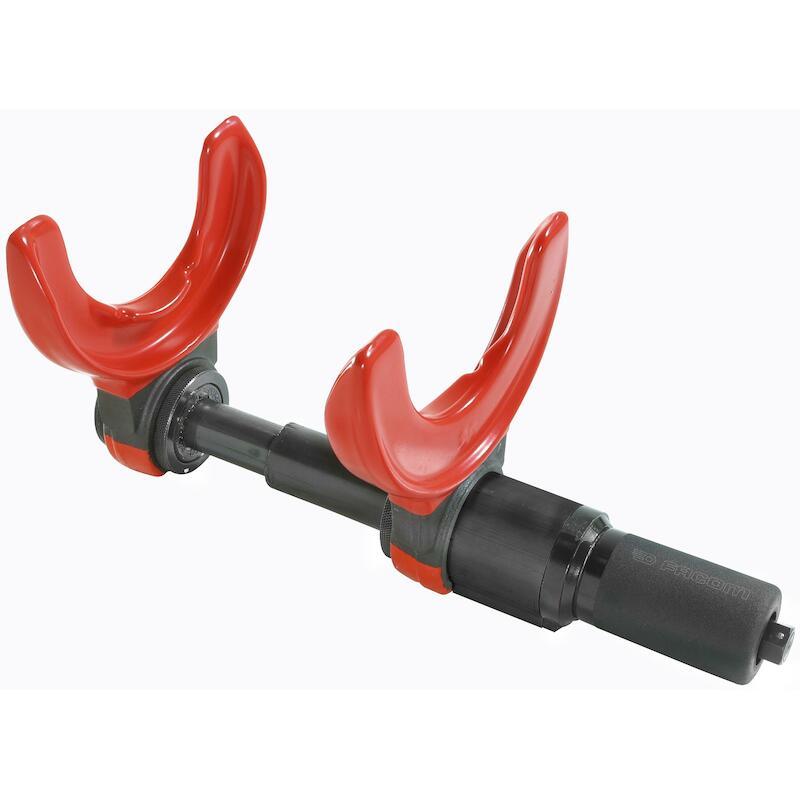

MECHANISCHE VEERSPANNER U.89M2 FACOM

Product description

• Mechanical tensioner

Features

• Telescopic two-stage tensioner driven by screw thread.
• Powered by a 22 mm hexagon. Can be used with a pneumatic or electric impact spanner 1/2 inch.
• Tested resistance: 100,000 N.
• Connecting piece to position the lower spring plate in two positions: maximum stroke possible on springs with a small number of windings.
• Suitable for all spring plates U.89.
• Stroke: 235 mm.
• Compressed length: 305 mm.
• Length of fully opened tensioner: 540 mm.
• Diameter: 70 mm.
