KASTVERBINDERS S-18 CLAMEX 80 PR LAMELLO

Product description

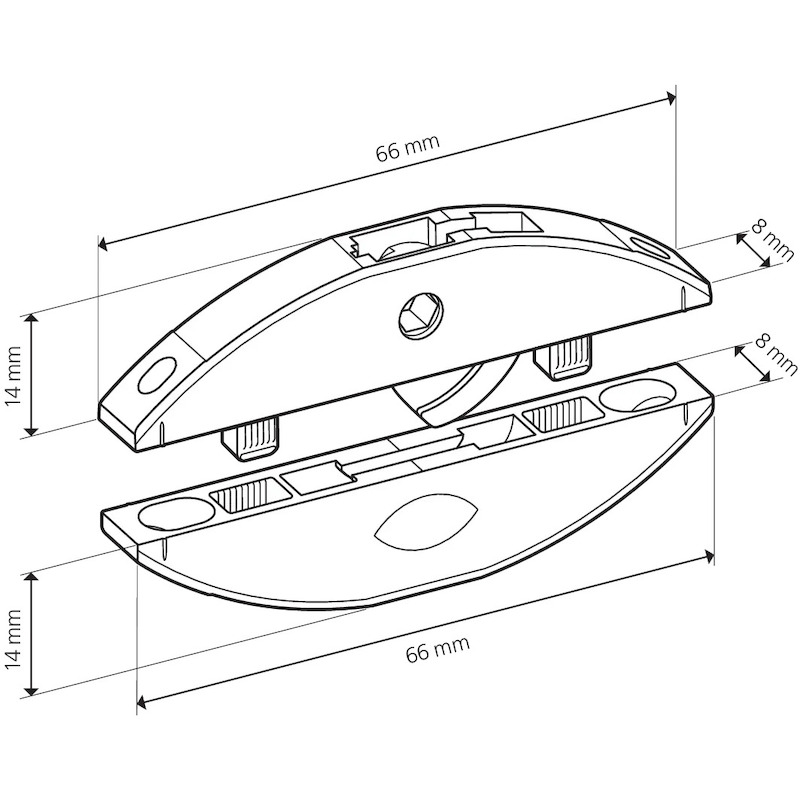

• Removable furniture connector 8 mm thick, fixed with screws
• Aesthetic appearance with the barely visible 6 mm access hole
• All corner and mitre joints from 22.5° to 180°
• High clamping force for perfectly closed joints
• Ideal for open shelves, cupboards or wardrobes under sloping ceilings

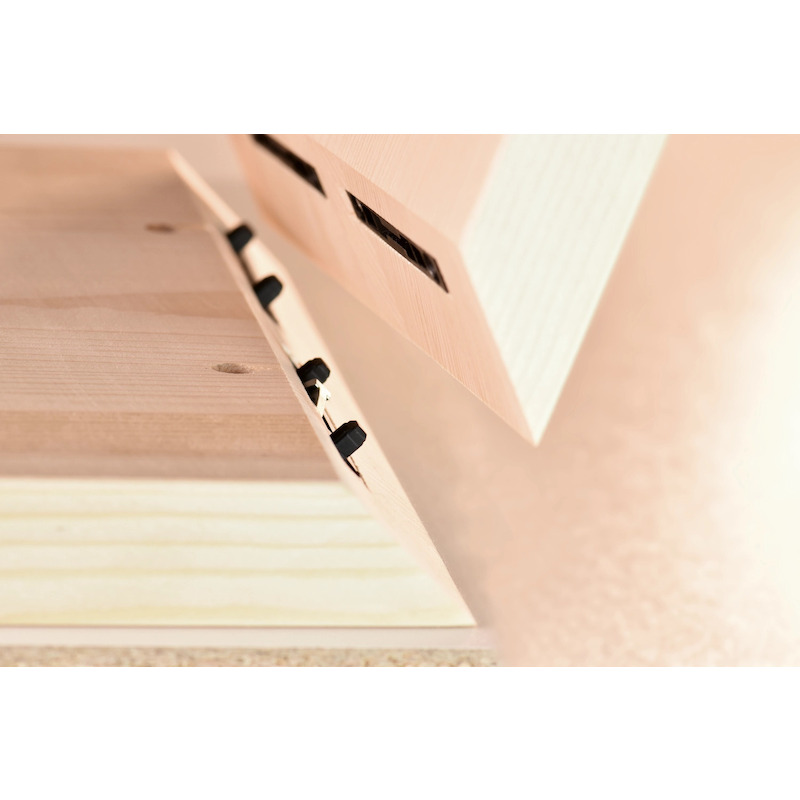

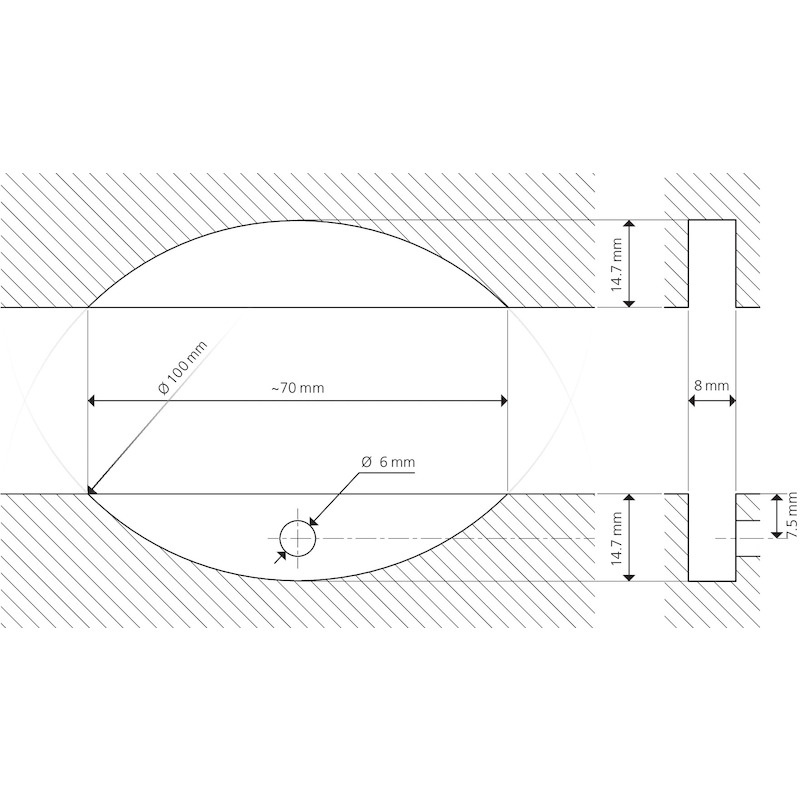

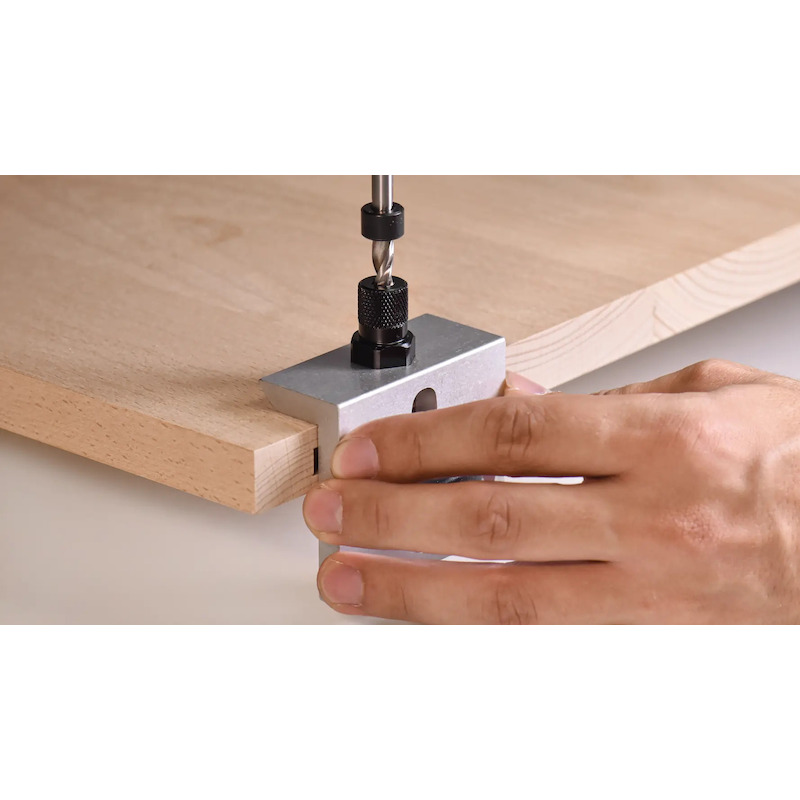

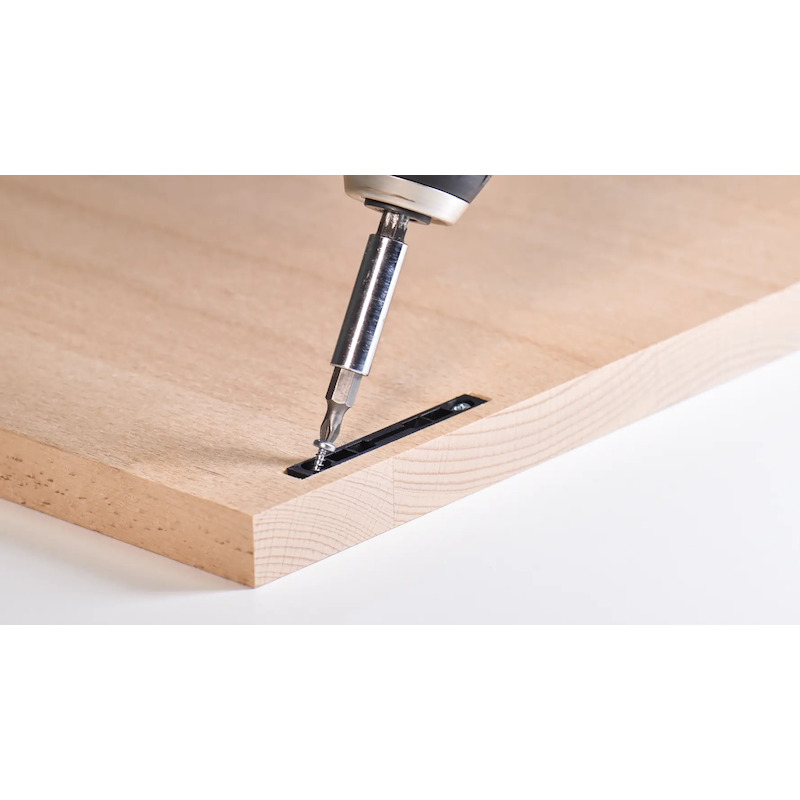

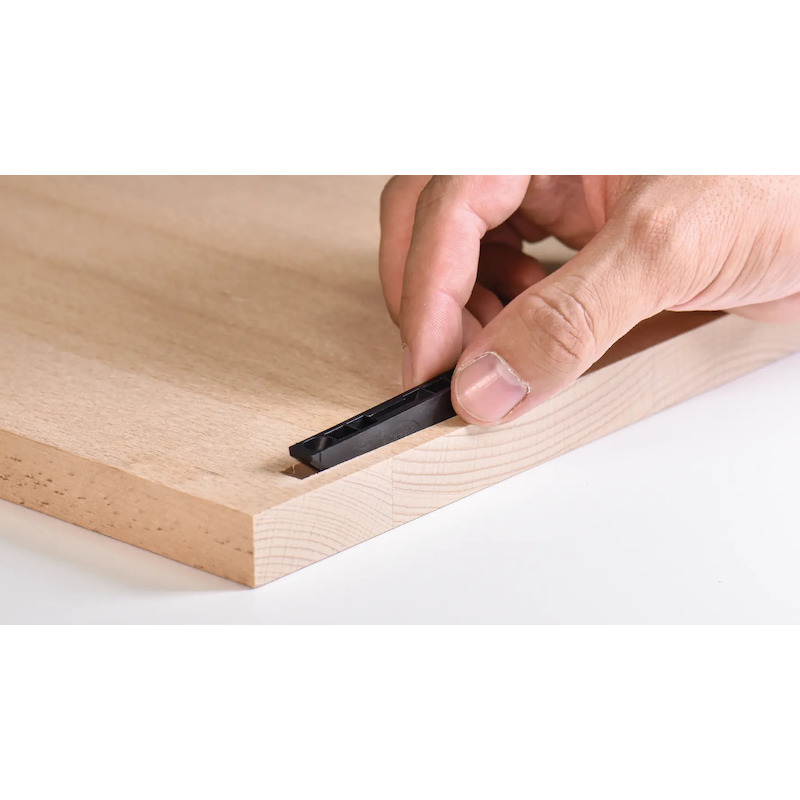

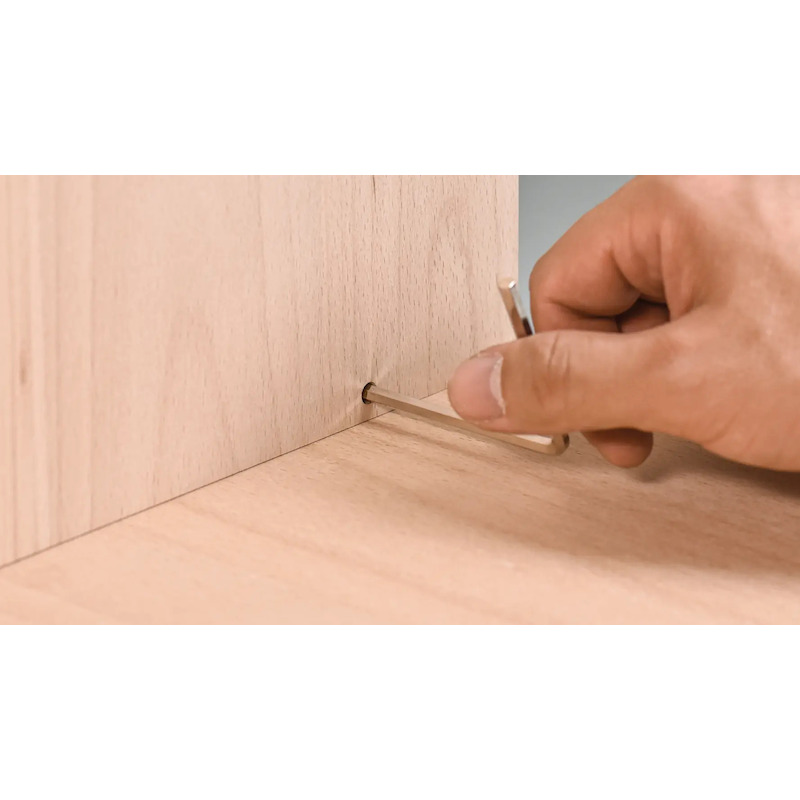

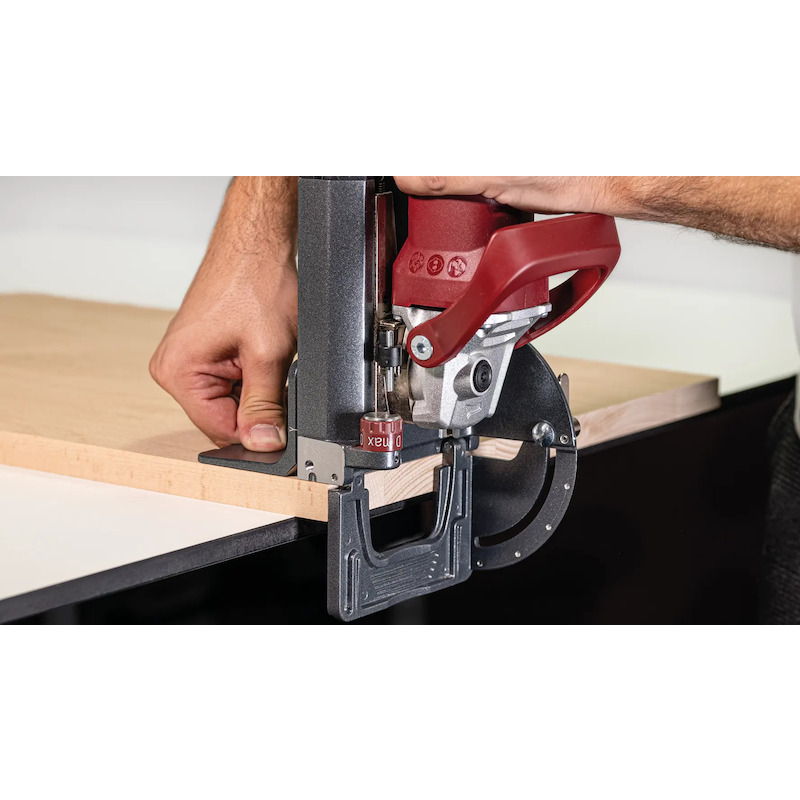

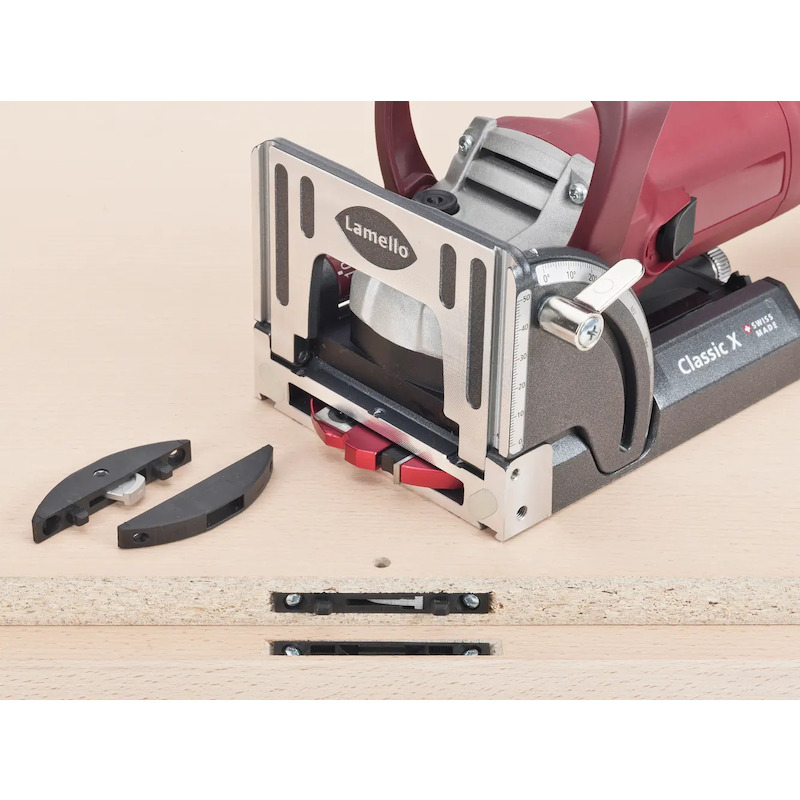

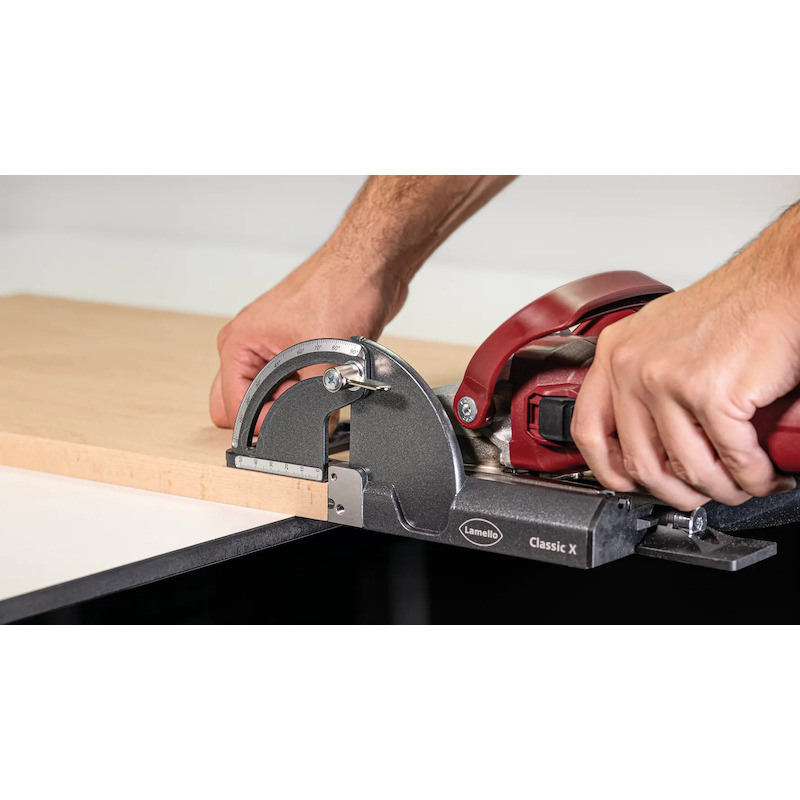

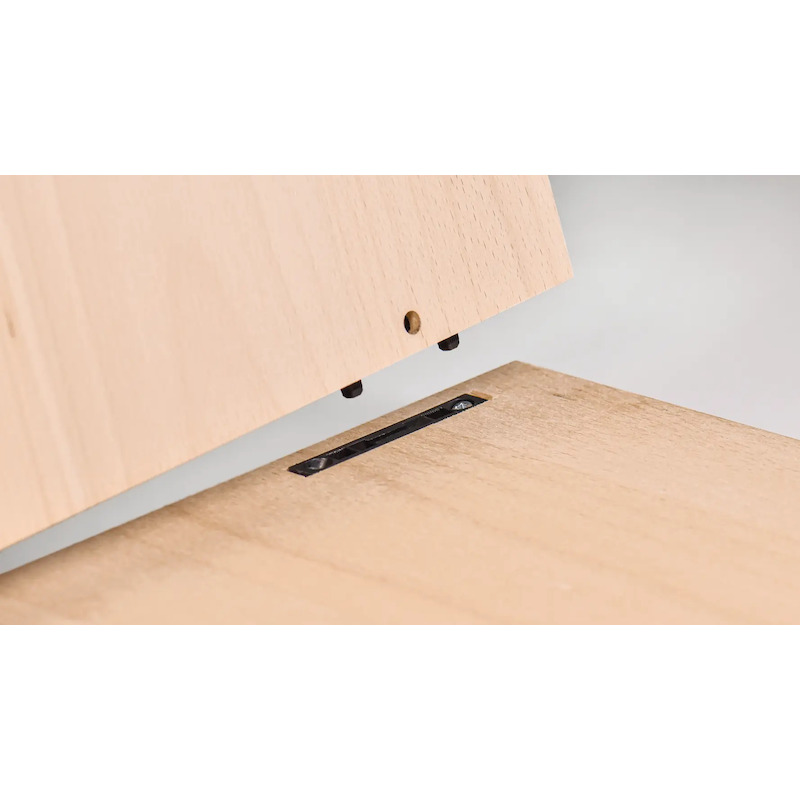

Clamex S-18 is a removable connector for the Lamello system and is screwed into an 8 mm wide groove. With its minimalist operating opening of 6 mm, Clamex S-18 is powerfully connected and released via a lever, similar to an eccentric connecting fitting. Clamex S-18 is highly aesthetic thanks to its small operating opening of only 6 mm diameter and allows almost completely concealed connections. Glue is not required. Aesthetic joints are possible at all angles and it is ideal for fixed or dismountable joints. The Clamex S-18 requires an 8 mm-wide groove, which can be milled at milling depth D (15 mm) and can be done with any Lamello grooving machine. With the 8 mm-wide Clamex groove router, it can be done in one milling operation. With the standard milling cutter (4 mm), two milling operations are required, with the second milling operation being offset by 4 mm using an insert plate. A drilling jig is used for the access hole, which allows the hole to be drilled at all angles from 22.5°-180°. Next, the removable connector is inserted into the workpieces and secured with two standard screws. Finally, the two workpieces are connected with an Allen key. Waiting for the adhesive to dry is thus not necessary and an assembled workpiece can immediately be further processed or prepared for shipment.

Applications

• Dismountable connecting fittings for sheet materials
• Glueing aid for mitred joints or corners that are difficult to tension
• In kitchen construction in open shelves or kitchen worktops HPL
• In interior construction for built-in cupboards, wardrobes under stairs or sloping roofs
• In furniture construction for high-quality furniture with mitred joints or unusual angles, wine racks or bookcases
• Mitred joints from a material thickness of 19 mm
• Mitred joints from a material thickness of 18 mm

Features

• Dismountable: Always detachable with the rotating lever
• Aesthetic: the small, barely visible opening (Ø = 6 mm) serves to open and close the connector
• High clamping force: For clamping and gluing workpieces at any angle ~ 80 kg
• Stackable: Workpieces with pre-assembled fittings remain stackable for easy storage or transportation
• Versatile: The small depth of the connector allows mitre cuts of 22.5 to 180°, such as for surface, corner and partition joints
