HULPTREKKER 60-200MM 18/2 KUKKO

Product description

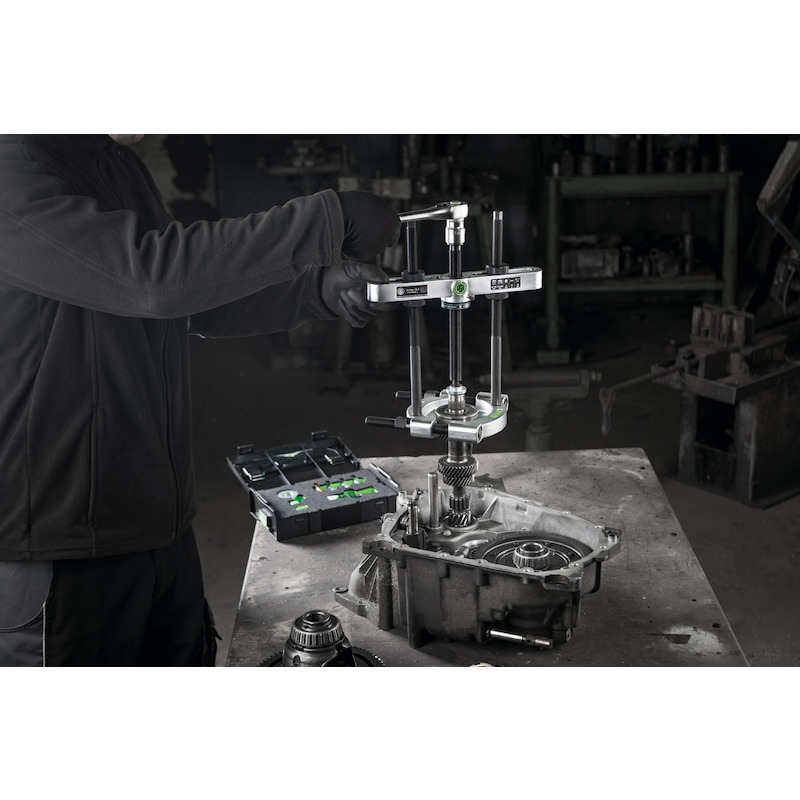

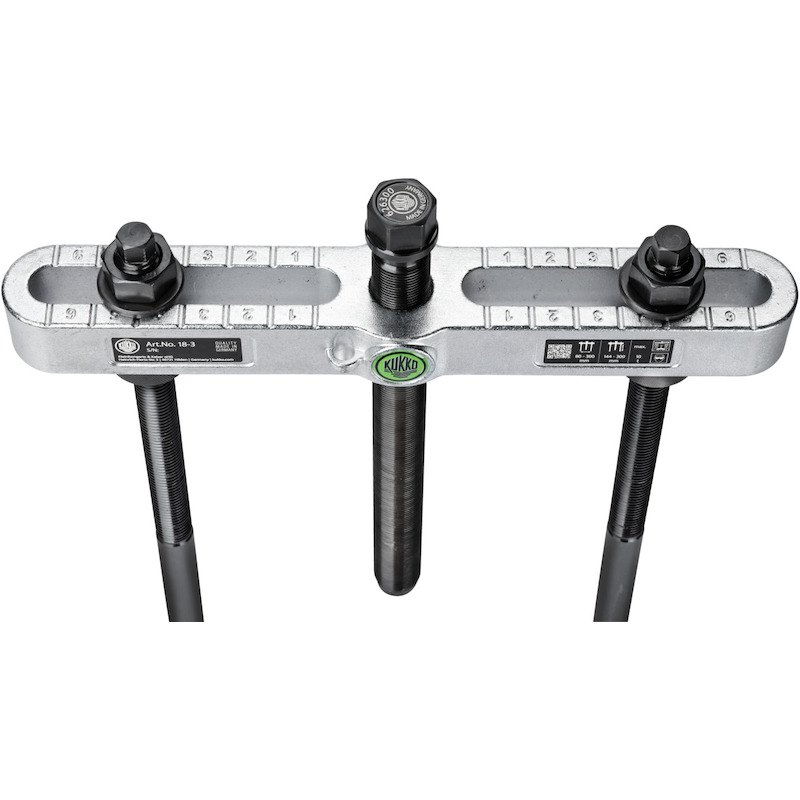

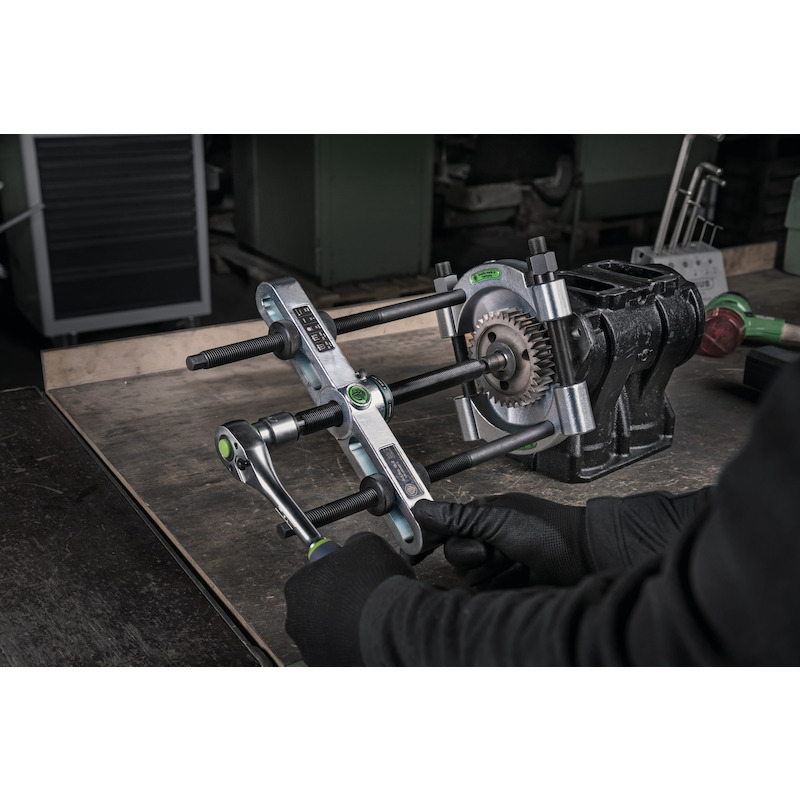

Series 18 auxiliary tractors are used together with Series 15 and 17 slurry tractors to pull off flat adjoining or thin-walled Parts in Crafts, Industry and Workshop, when insufficient space is available for towing hooks. The process of Separating Pulling is capable of gently separating those Parts first, before they can be pulled off from outside. For accurate adjustment, a scale with number values is located above the Bridge. At the bottom of the pulling bolts is a key area for safely connecting or loosening joints or components.

Application

For pulling flat-lying or thin-walled Parts in Craft, Industry and workshop.

Scope of delivery

• 018275:Pull bolts for auxiliary tractors 17-B, 15-B, 68-2, 18-2, 18-2-B
• 18-2-T:Bridge for auxiliary pullers 17-B, 18-2, 18-2-B, 15-B
• 621170:Spindle Ø 20.955 mm for spindle Thread G 1/2" / 14, 170 mm length, 5.4 mm Screw thread
• 672152:Screw-in nut G1/2 - SW32 for 18-2 with fixing pin
