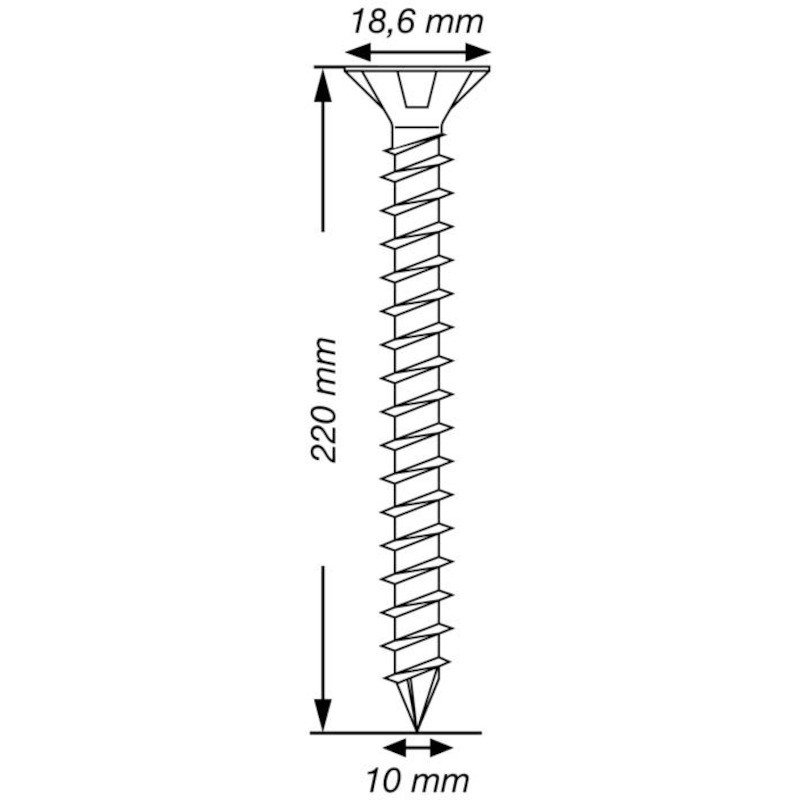

HOUTBOUWSCHROEF T50 VD T-STAR 10,0X220 -INA4

Product description:

• Flat countersunk head, T-STAR plus
• With milling ribs and SPAX CUT point, synthetic coating
• Stainless steel A4 III

Application:

• Lateral pressure reinforcement
• Flexibly connected bending beams
• Lateral tension reinforcements

Advantages:

• Absorption of high tensile and compressive forces by being fully threaded
• Absorption of particularly high pulling forces compared to partial threaded screws
• Wide spectrum of applications through screw lengths of up to 600 mm
• Cost-effective alternative to bolt connections, formed metal sheet parts and lateral reinforcement through glued on reinforcement panels or glued in threaded bars

Approved by building authorities:

• Under Z-9.1-519 as wood connector

Special properties:

• SPAX CUT point: precision placement, allows screwing in without pre-drilling (wood-dependent), effectively reduces splitting of the wood
• Full thread: absorption of high tensile and compressive forces
• Stainless steel A4 III: Permanent protection against corrosion

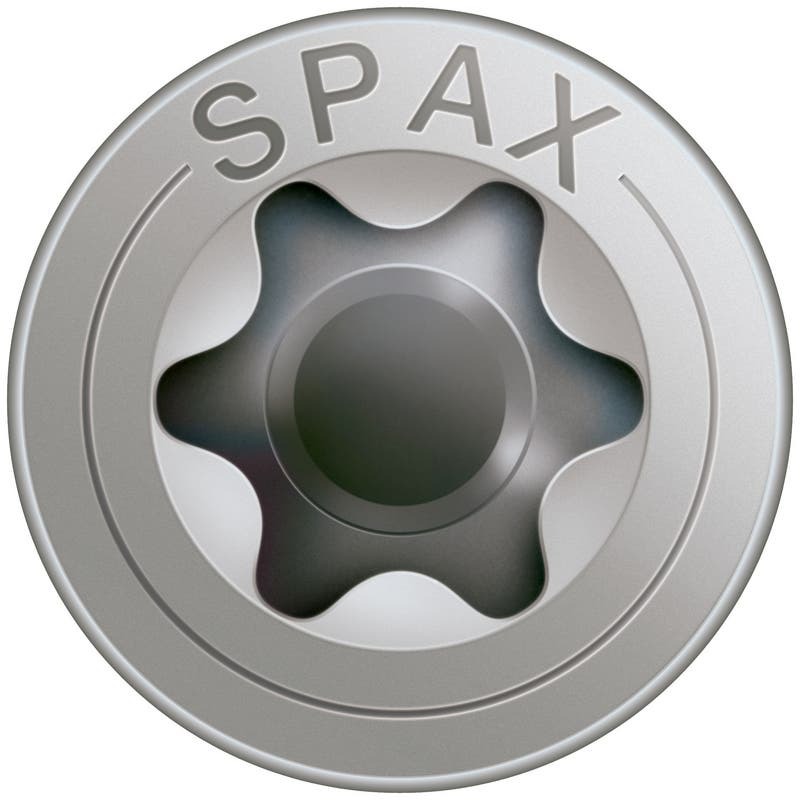

• T-STAR plus: secure bit grip, no cam-out effect, optimal force transmission

Features:

• SPAX typical ground serrations: quick and secure fastening
• Flat countersunk head SPAX-RA with milling ribs: clean, flush sinking of the head
