HIJSKABEL 6,5MM 50M 245929 SCAFOR

Product description

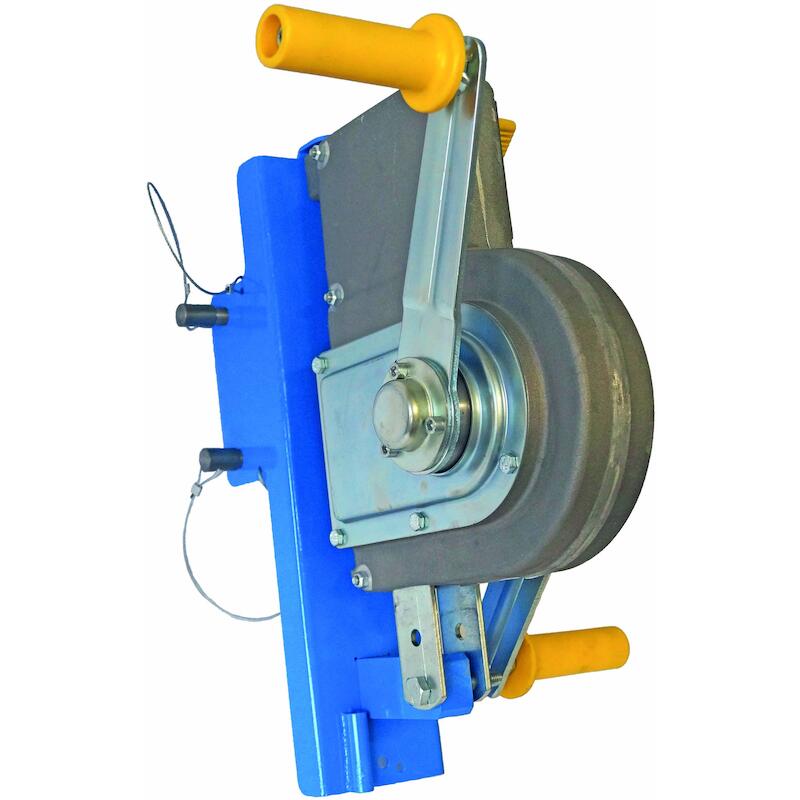

Manual winch with running cable for use with the Davitrac.

Scafor winch models

The Scafor range consists of the following models

• Scafor R 500kg without cable - with bracket for Davitrac
• Galvanized cable Ø 6.5 / 20m M47 for Scafor R
• Galvanized cable Ø 6.5 / 30m M47 for scafor R
• Galvanized cable Ø 6.5 / 40m M47 for scafor R
• Galvanized cable Ø 6.5 / 50m M47 for scafor R
• Galvanized cable Ø 6.5 / 60m M47 for scafor R
• Galvanised cable Ø 6.5 / 70m M47 for scafor R

Rescue winch in combination with the Davitrac arm for confined spaces

Rescue winch that complies with EN 1496, with a maximum load of 150 kg. Scafor also meets the requirements of lifting winches with a maximum load of 500 kg (Directive 2006/42/CE).

Can be easily mounted, without tools, on the Davitrac.

Allows to secure a user up to 150 kg equipped with his tools. Can also be used to hoist material with a capacity of 500 kg. Thanks to the transit cable winch technology, very long cables of more than 30 m can be installed.

The Scafor cable is pulled by pulleys with an anti-jump cable attached to Davitrac's arm. To secure a user's work at a length of more than 30m, a Stopfor fall arrester with suitable rope length should be used.
