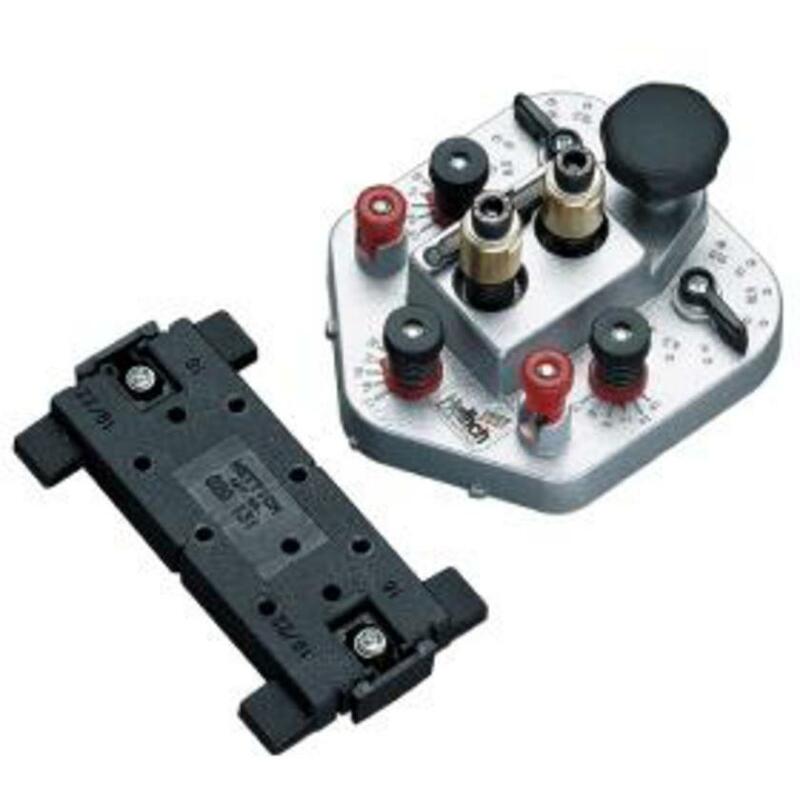

HETTICH 020166 DRILL-JIG VB BOORMAL
02450290
4023149201660
HETTICH
20166
DrillJig
EA
Currently out of stock
6 day(s) lead time
- For precise mounting of connection fittings in special productions
- Precise, tear-out-free angular drilling
- Carbide drills
- No run-out of the drill bit on cut holes
- System 32: drill holes5 mm, spacing 32 mm, 37 mm distance to the front edge
- For retrofitting construction bases
- Hand drill or cordless screwdriver required
- For wood thicknesses 16, 19 and 22 mm
- eccentric joint fittings VB 18/19/20/21/
- 35/35M/36/36M
- Connecting fittings VB 135
- shelf connector VB 5416/19/23Toolex
- drill body VB
- drill body dowel
- drill bit10 mm mounted
- drill bit20 mm mounted, for VB 35/35M/36/36M and
- VB 135 or drill bit30 mm mounted, for VB 18/19/20/21
- hexagonal boss
