GARAGEKRIK 3 TON DL.32APB FACOM

Product description

• Multifunctional garage jack for passenger cars and vans

• Maximum lifting capacity: 3 T
• Maximum lifting height: 465 mm
• Minimum bottom height: 133 mm
• Double piston for fast work
• Foam protection on handle
• Removable polyurethane protection on support head
• Wheels with quiet polyurethane tyres
• Overpressure valve
• Dimensions: L 690 x W 337 x H 163 mm
• CE standard EN1494 - ASME - PASE

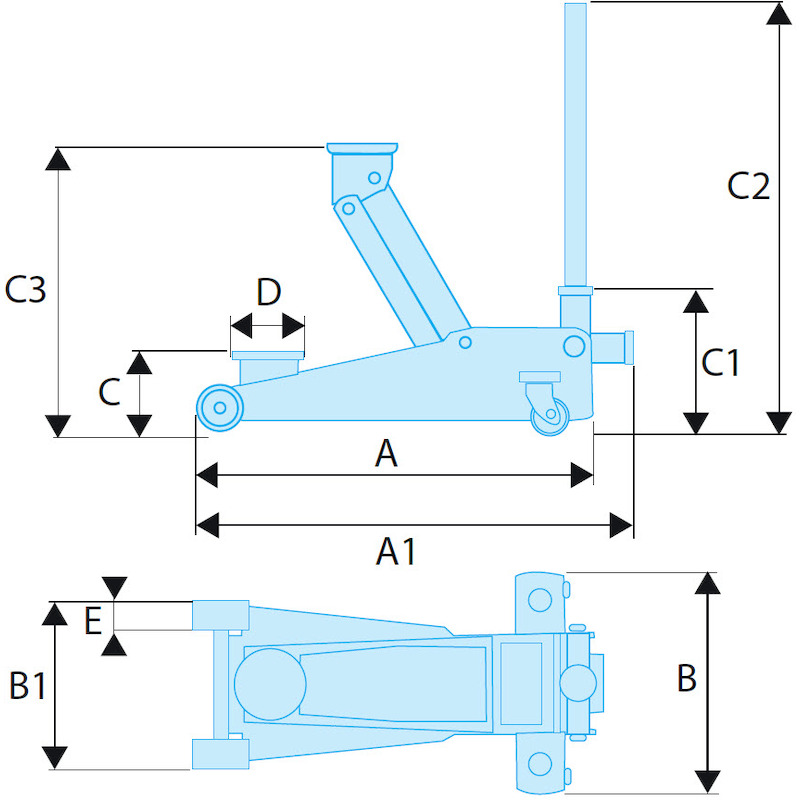

Technical features

• A: 615 mm
• A1: 680 mm
• B: 344 mm
• B1: 255 mm
• C: 133 mm
• C1: 220 mm
• C2: 1305 mm
• C3: 465 mm
• D: 108 mm
• E: 48 mm
• Weight: 32.5 kg
