BOORSTANDAARD HOUTBEWERKING GD 320 FESTOOL

Product description

Precise right-angled drilling holes.

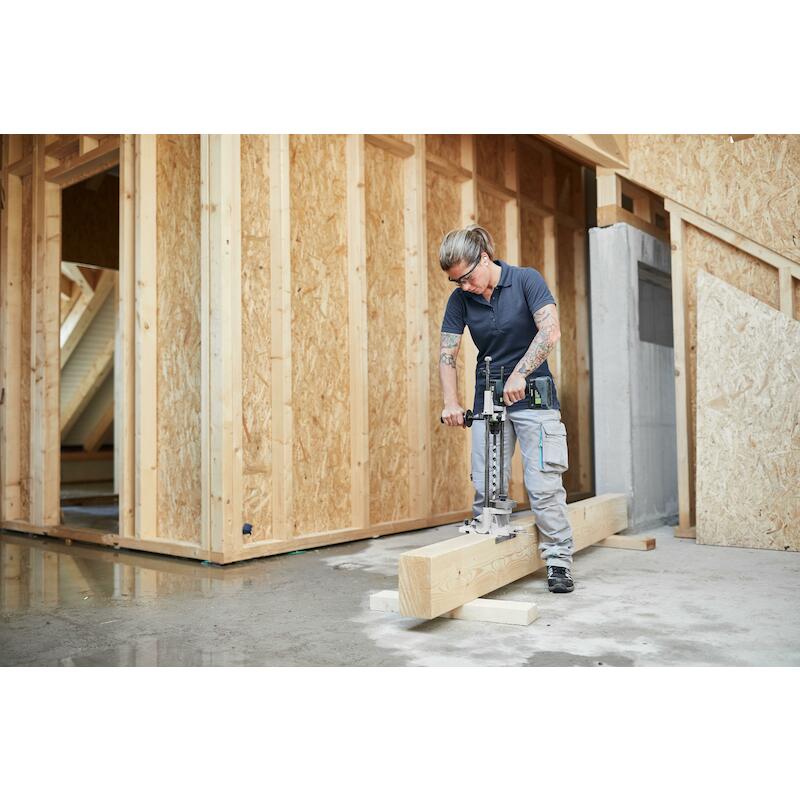

The drill stand for precise right-angled holes in wood construction up to a drilling depth of 240 mm. The holder is suitable for all drills with a collar of 43 mm or 57 mm. The centring plate enables the use of drills with diameters from 8 to 26 mm.

• Used in wooden structures for precise bore holes with auger bits
• Excellent guidance and safe operation through the auxiliary handle located on the carriage, optionally fixed in any of 3 positions
• Precise guidance of drill/borer/auger bits through the centring plate bushings, rotatable for various drill/borer/auger bit diameters of 8 mm to 26 mm
• Precise adjustment of the drill depth due to the dual lockable depth gauges
• Able to fit any drilling machines with 57 mm or 43 mm #d# collar attachment using the adapter ring included as a standard accessory
• Easy movement thanks to precise guide rods and bronze slide bearing in the guide block
• Positive stability due to the square base plate with precision-milled supporting surface
• Practical scale on the parallel stops for fast setting of the position

Ideally suited for

• Used in wooden structures for precise bore holes with auger bits
• Timber construction
• Carpentry work
• Joinery work
• For TPC 18/4, TDC 18/4, DRC 18/4, PDC 18/4, DR 18/4 E, PD 20/4 E, DRP 16 ET, DRP 18-4 DEC, PDP 20-4 DEC, DR 20 E

Scope of delivery

• 2 x parallel side fence
• Adapter ring Ø 57 mm / 43 mm
