BOLKNOP ZWART DUROPLAST 319-KU-20-M6-C GANTER

Name: BOLKNOP ZWART DUROPLAST 319-KU-20-M6-C GANTER
Brand: GANTER
Availability: OutOfStock

Dexis NR:

02081586

EAN:

-

Brand:

GANTER

Manufacturer number:

A014006

Diameter:

20 mm

Thread designation:

M6

min (25)

EA

Sold per 25

Currently out of stock

9 day(s) lead time

Print

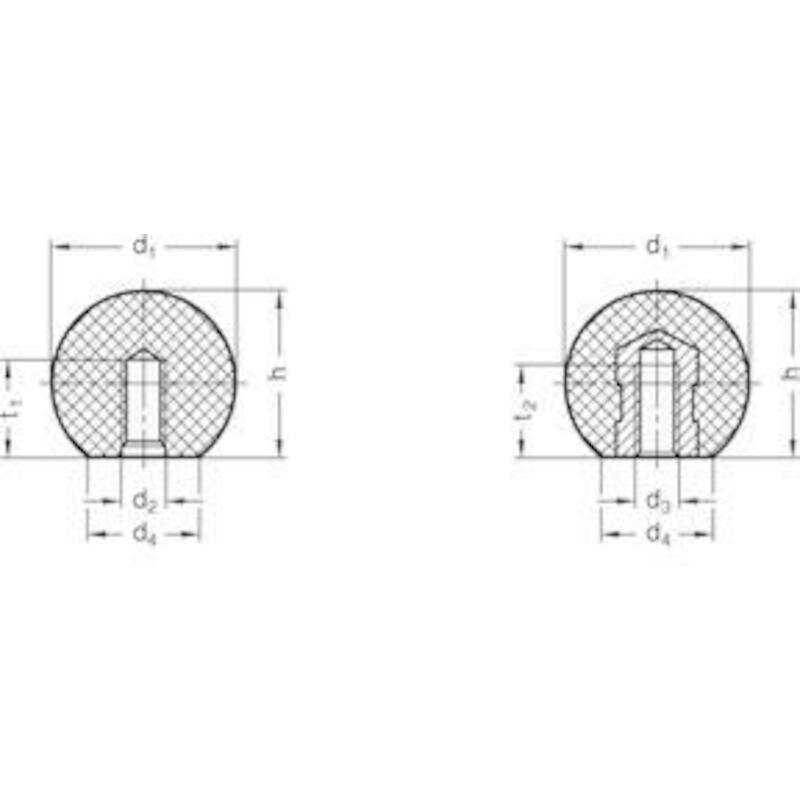

Version in PlasticType
- C: with tapped hole, no bushType
- E: with tapped bushPlastic
KUDuroplast
(Phenolic PF)
- Flash removed and
- polishedBlackRed
- RT, similar RAL 3003: add RT on order codeBush
(Type E)
- Steel, zinc platedBrass
- MS add MS on order code (only in black version)
Plastic KTTechnopolymer
(Polyamide PA)
- Shock resistantBlack
- , matt finishRed
- RT, similar RAL 3003: add RT on order codeVersion
in SteelType
- C: with tapped holeType
- K: with plain hole H7Steel
STPolishedVersion
in AluminiumType
- C: with tapped holeType
- K: with plain hole H7Aluminium
AL
Polished

Version in Stainless Steel

Stainless Steel AISI 303 NI

Matt shot-blasted

Version in Plastic (Press on type)

Type L

Plastic KU

Duroplast (Phenolic PF)

Black, shiny finish

Tolerance ring

Spring steel

Type M

Plastic KT

Technopolymer (Polyamide PA)

When ball knobs DIN 319 (Press on type) type L and M are used the shaft does not require a thread.
During mounting, easy blows with a soft hammer are sufficient to drive the knob into place, the shaft end should be slightly rounded or chamfered (30°).
Before the assembly of the knobs, type L the tolerance ring is to be inserted into the drilling.
Further it is to be noted that the button is put on perpendicular and / or axially parallel. Otherwise the button may break.
Type M ball knobs are a cheaper solution, however, the pulling off force is less predictable.
