INDEXING PLUNGER
Back

BLOKKEERSTIFT+RUSTPOSITIE 617-5-A GANTER

02743403

-

GANTER

A018748

5 mm

54,5 mm

M10 x 1

EA

In Stock: Available

2 day(s) lead time

Product description:



Specification:

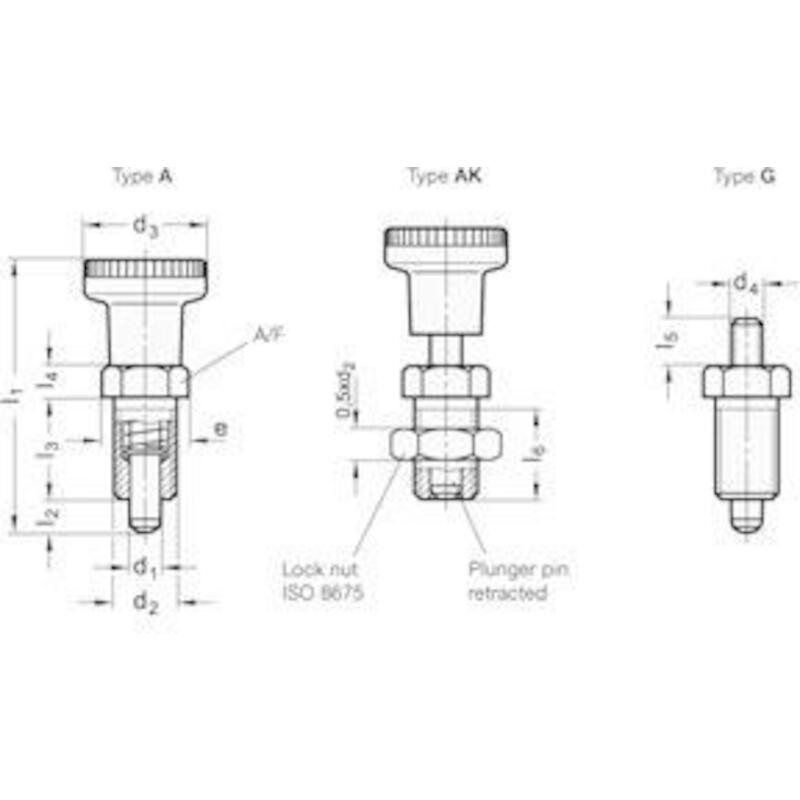

  • Types
  • Type A: with Plastic Knob, without lock nut
  • Type AK: with plastic knob, with lock nut
  • Type AN: with Stainless Steel-Knob, without lock nut
  • Type AKN: with Stainless Steel-Knob, with lock nut
  • Type G: with threaded rod, without lock nut
  • Type GK: with threaded rod, with lock nut
  • Version in
    • SteelBlackenedPin
    • hardened
  • Version in Stainless Steel AISI 303 NI
    • Pin chemically nickel plated
    • Knob Type A / AK
      • Plastic (Polyamide PA)
      • Black, matt
      • Not removable
    • Knob Type AN / AKN
      • Stainless Steel AISI 303
      • Not removable

    Information

    • Type G or GK of the GN 617 indexing plungers have been designed for applications where the indexing plunger is not operated with the standard knob.
    • The indexing plungers are designed such that the plunger set in the end position (spring is "on block") can also absorb axial forces.
    • For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
