BLOKKEERSTIFT+RUSTPOSITIE 617.1-8-A GANTER

Product description:

Specification:

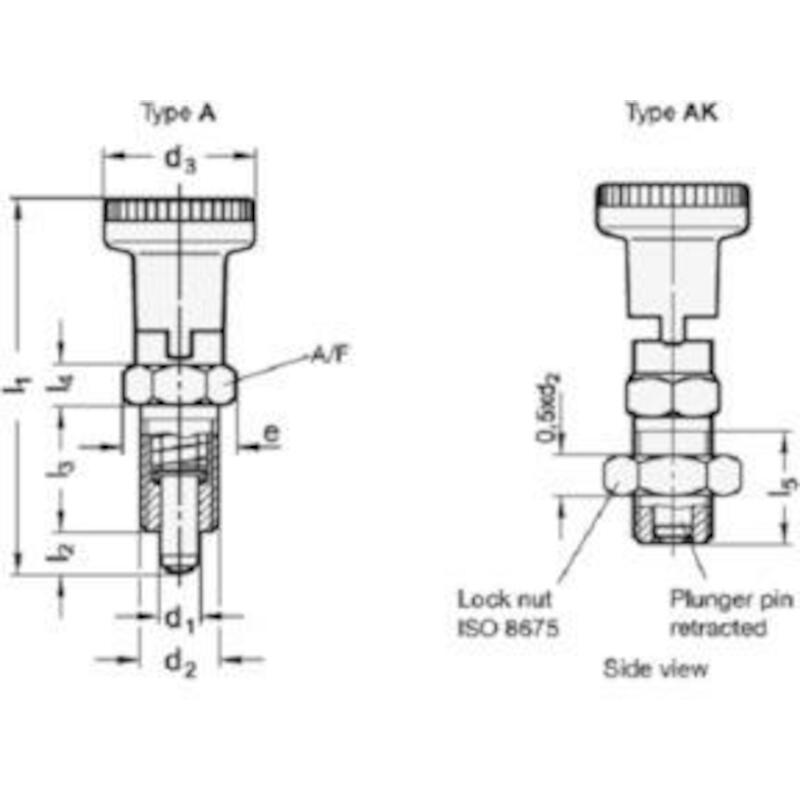

• Types
  • Type A: with plastic knob, without lock nut
  • Type AK: with plastic knob, with lock nut
  • Type AN: with Stainless Steel-Knob, without lock nut
  • Type AKN: with Stainless Steel-Knob, with lock nut
• Version in Steel
  • Blackened
  • Pin hardened
• Version in Stainless Steel AISI 303 NI
  • Pin chemically nickel plated
  • Knob Type A / AK
    • Plastic (Polyamide PA)
    • Black, matt
    • Not removable
  • Knob Type AN / AKN
  • Stainless Steel AISI 303
  • Not removable

Information

• Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position.
• To achieve this, the knob is rotated by 90° degrees after being retracted.
• A notch keeps the plunger in this position.
