BLOKKEERSTIFT+RUSTPOSITIE 617.1-6-A GANTER
02743398
-
GANTER
A018738
6 mm
61 inch
M12 x 1,5
min (10)
EA
Sold per 10
Currently out of stock
6 day(s) lead time
Product description:
Specification:

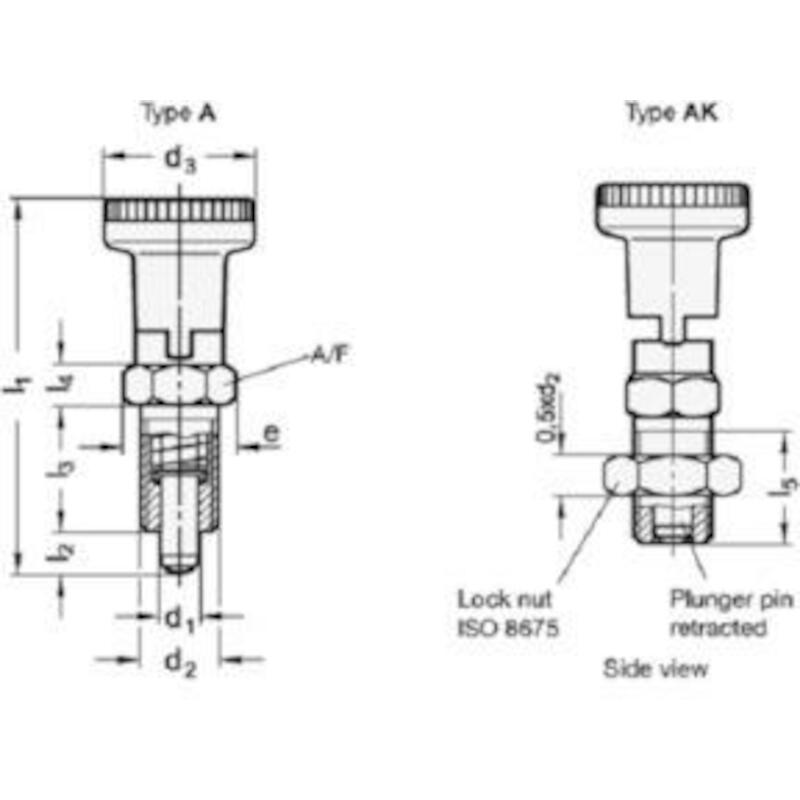

- Types
- Type A: with plastic knob, without lock nut
- Type AK: with plastic knob, with lock nut
- Type AN: with Stainless Steel-Knob, without lock nut
- Type AKN: with Stainless Steel-Knob, with lock nut
- Version in Steel
- Blackened
- Pin hardened
- Version in Stainless Steel AISI 303 NI
- Pin chemically nickel plated
- Knob Type A / AK
- Plastic (Polyamide PA)
- Black, matt
- Not removable
- Knob Type AN / AKN
- Stainless Steel AISI 303
- Not removable
Information
- Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position.
- To achieve this, the knob is rotated by 90° degrees after being retracted.
- A notch keeps the plunger in this position.
