BLOKKEERSTIFT+RUSTPOSITIE 612-12-M20X1,5-B
02743378
-
GANTER
A018374
12 mm
69 mm
M20 x 1,5
min (5)
EA
Sold per 5
Currently out of stock
11 day(s) lead time
Product description:
Specification:

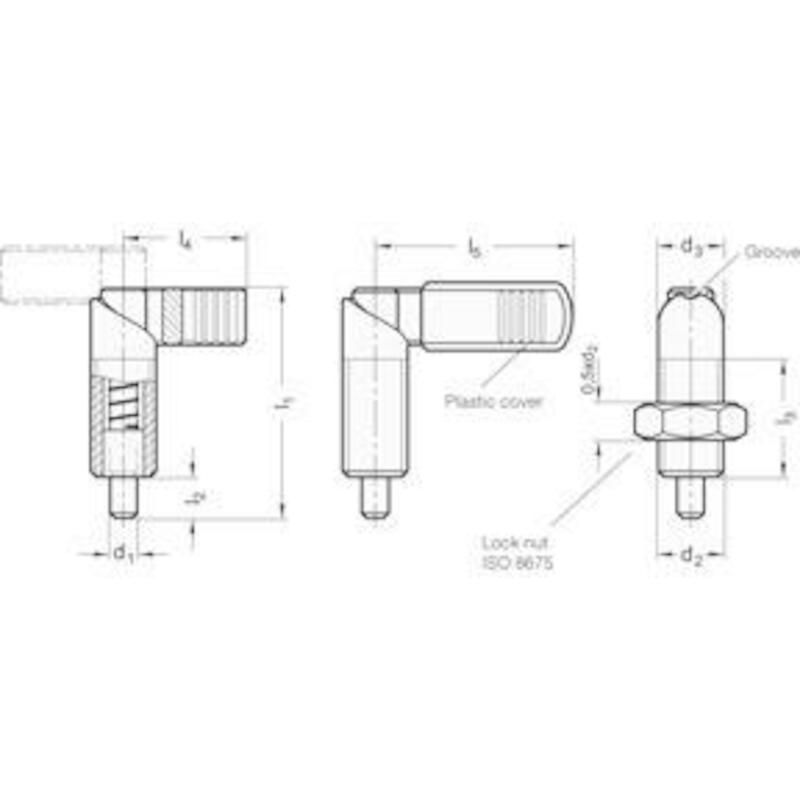

- Types
- Type A: without plastic cover, without lock nut
- Type B: with plastic cover, without lock nut
- Type AK: without plastic cover, with lock nut
- Type BK: with plastic cover, with lock nut
- Version in Steel:
- Blackened
- Pin nitrided
- Version in Stainless Steel AISI 303 NI:
- Spring
- Stainless Steel AISI 301
- Plastic cover (Polyamide PA)
- Black, matt
Information
- Cam action indexing plungers GN 612 are used in cases where the locking pin must not protude all the time.
- By rotating the lock through 180° the locking pin withdraws itself.
- A groove is provided in either position to prevent the lock from rotating.
- Range of cam action indexing plungers
