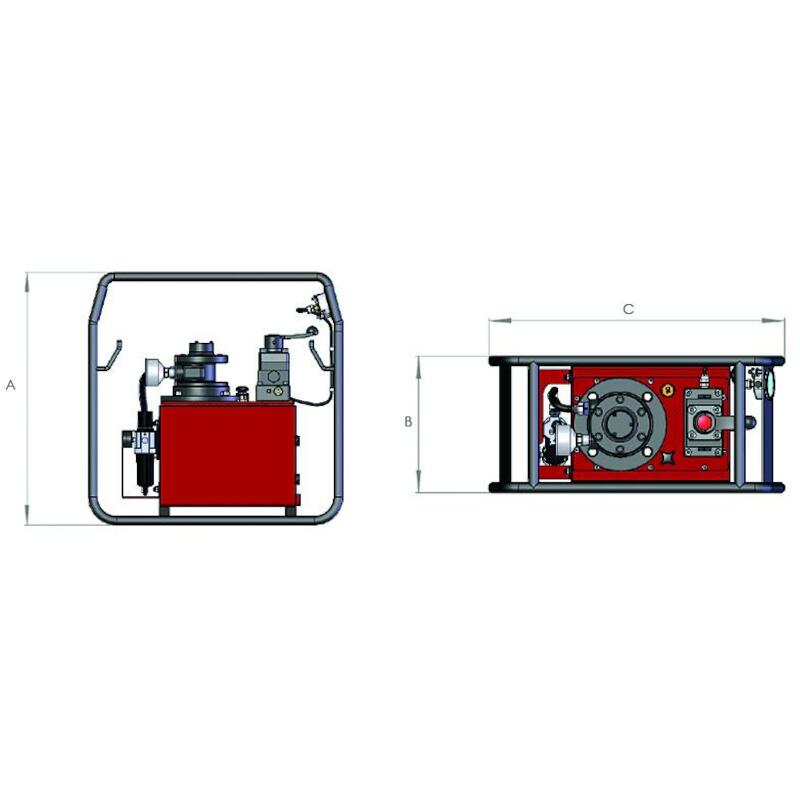

AIR DRIVEN, TWO STAGE PUMP - HAP21012 - HI-FORCE

Product description

• Air-driven pump with high output
• Working pressure 700 bar
• Two-stage design
• 10 litre oil reservoir
• Driven by a 3 kW high-performance air motor with a maximum air consumption of 2.4 m³ per minute at an inlet air pressure of 7 bar
• Oil yield 1st stage: 10 l/min
• Oil flow: 2nd stage: 1.3 l/min
• Externally adjustable pressure control valve for pressure settings up to 700 bar
• Facilities for storing cables and hoses
• Supplied with robust protective frame, pressure gauge, FRL unit
• Weight: 57.5 kg
