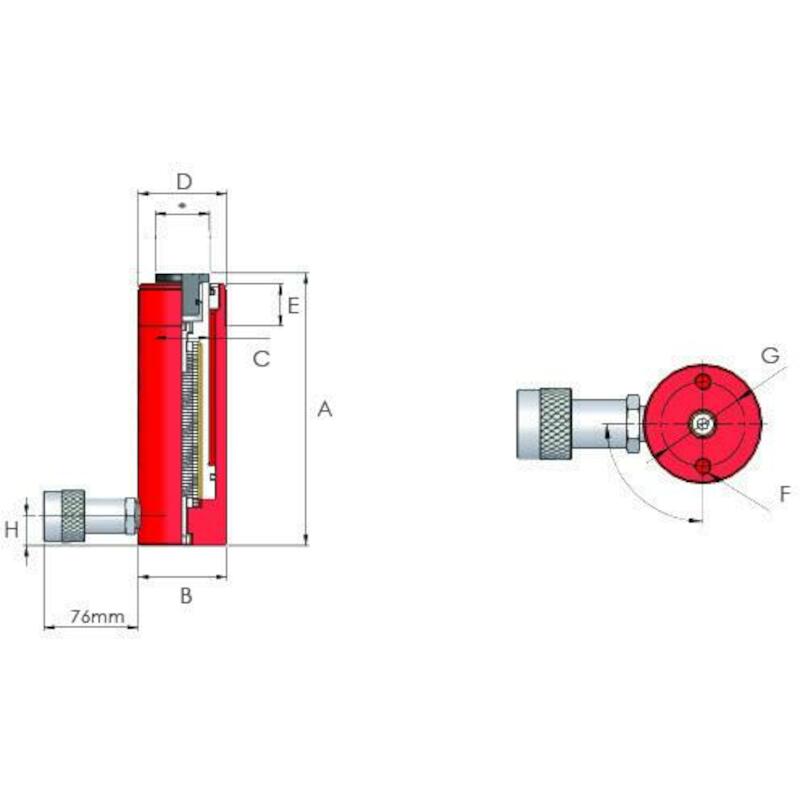

50 TONNE CAPACITY, SINGLE ACTING MULTI-PURPOSE CYLINDER - HSS506 - HI-FORCE
06002842
5056388008775
HI-FORCE
HSS506
127 mm
251 mm
50 t
152 mm
EA
In Stock: Available
6 day(s) lead time
Product description
- Single-acting, spring return
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Sleeve thread suitable for full load
- Grooved saddles fitted as standard on all models
- Capacity: 50 tonnes
- Stroke length: 152 mm
- Oil capacity: 1084 cm³
- Construction height: 251 mm
- Cylinder diameter: 127 mm
- Piston diameter: 79 mm
- Weight: 20.0 kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
