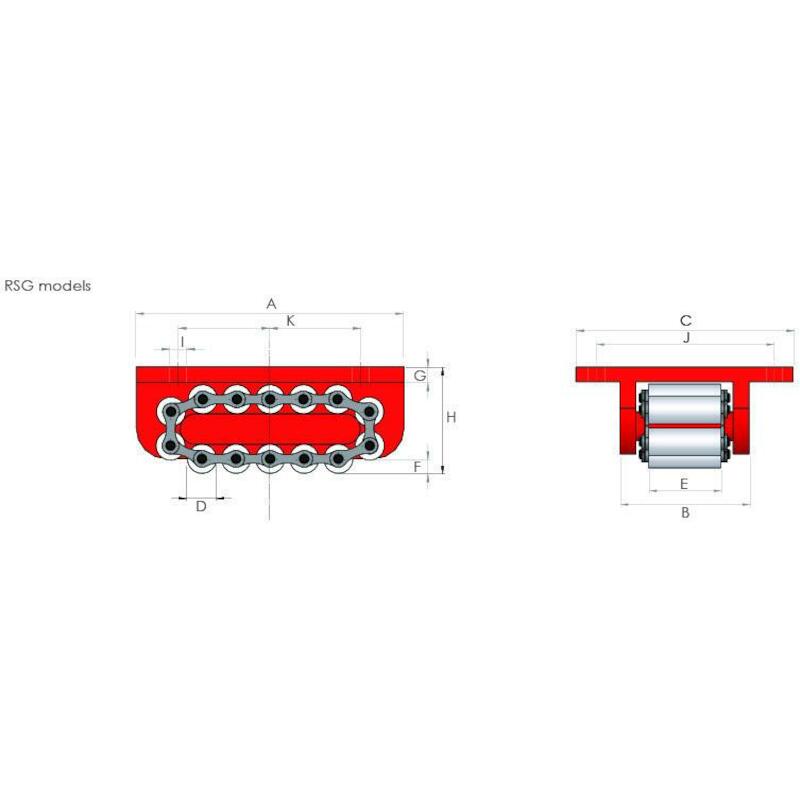

40 TONNES HEAVY DUTY SKATE WITH GROOVED SIDE - SINGLE ROLLER DESIGN - RSG40 - HI-FORCE
06003216
5056388015674
HI-FORCE
RSG40
104 mm
40 t
270 mm
130 mm
EA
Currently out of stock
8 day(s) lead time
Product description
- Suitable for use over longer distances and/or permanent loads
- Groove guide in the central plate significantly reduces wear
- Optional fixing holes (standard on models RSG40 and RSG50)
- Maximum recommended travel speed 5 metres per minute
- Also suitable as fixed-mounted conveyor roller under the moving load
- Equipped with flat top plate
- Capacity: 40 tonnes
- Number of rollers in contact with ground surface is 4
- Total number of rollers on the skate is 13
- Geiwht: 19.6 kg
- Overall length: 270 mm
- Width of support surface: 210 mm
- Height: 104 mm
