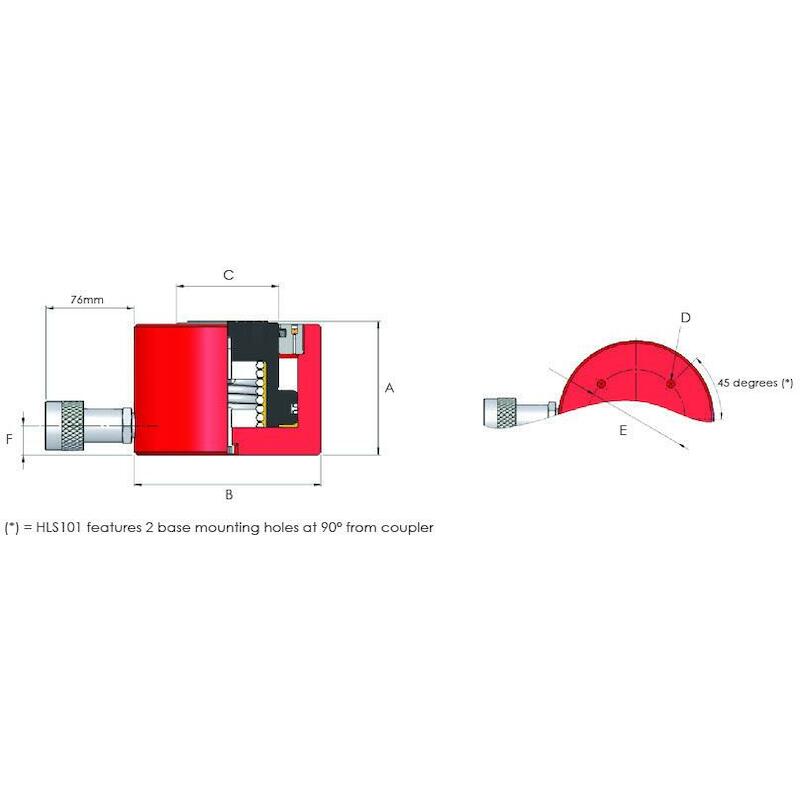

32 TONNE CAPACITY, SINGLE ACTING, LOW HEIGHT CYLINDER - HLS302 - HI-FORCE
06002650
5056388007167
HI-FORCE
HLS302
102 mm
119 mm
32 t
60 mm
EA
In Stock: Available
6 day(s) lead time
Product description
- Single-acting, spring return
- Compact design with optimum stroke lengths
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction F
- Anti-extrusion seals for improved performance at high pressure
- Capacity: 32 tonnes
- Stroke length: 60 mm
- Oil capacity: 274 cm³
- Cylinder diameter: 102 mm
- Piston diameter: 60 mm
- Weight: 7 kg .
- Building height: 119 mm
- Max. working pressure: 700 bar
- Complete with quick-release coupling
