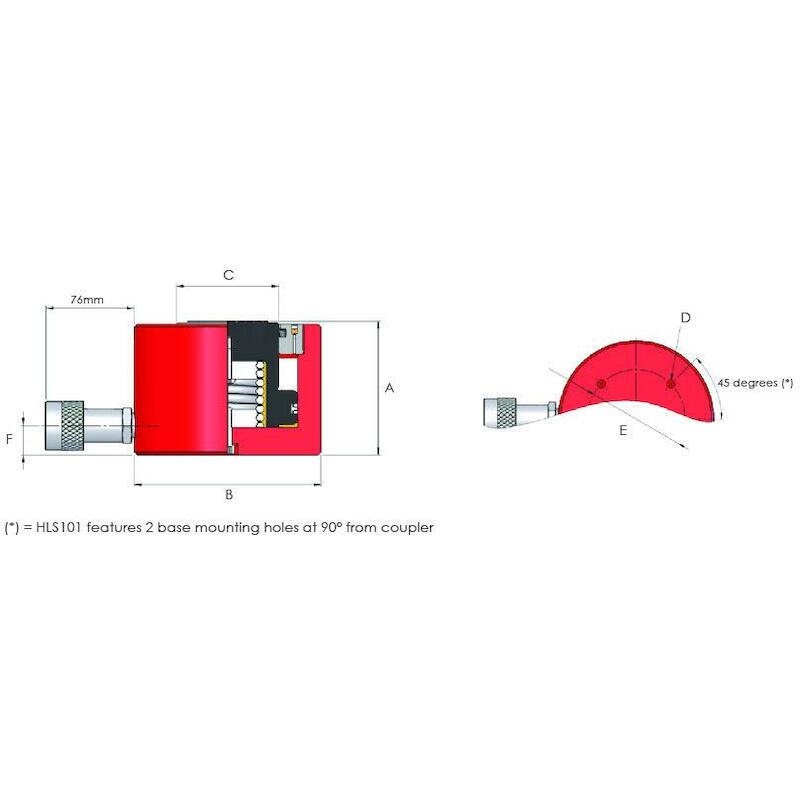

20 TONNE CAPACITY, SINGLE ACTING, LOW HEIGHT CYLINDER - HLS201 - HI-FORCE
06002646
5056388007143
HI-FORCE
HLS201
90 mm
102 mm
20 t
44 mm
EA
In Stock: Available
6 day(s) lead time
Product description
- Single-acting, spring return
- Compact design with optimum stroke lengths
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction F
- Anti-extrusion seals for improved performance at high pressure
- Capacity: 20 tonnes
- Stroke length: 44 mm
- Oil capacity: 126 cm³
- Cylinder diameter: 90 mm
- Piston diameter: 51 mm
- Weight: 4.8 kg
- Construction height: 102 mm
- Max. working pressure: 700 bar
- Complete with quick-release coupling
