109 TONNE CAPACITY, SINGLE ACTING, FAILSAFE LOCK RING CYLINDER - HFG1006 - HI-FORCE

Product description

• Hydraulic lock nut cylinder
• Single acting, load return
• Capacity of 109 tonnes
• Stroke length of 150 mm
• Working pressure 700 bar
• The mechanical locknut allows the load to be locked for a longer period of time
• Suitable for vertical lifting only
• Screwed plunger fitted with tilting saddle as standard to reduce the risk of side loading
• Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
• Bearing surfaces with minimal friction
• Anti-extrusion seals for improved high-pressure performance
• Stroke restriction port to limit the stroke length
• Optional pivot pin for easy rotation of the retaining ring: TTB10
• Oil capacity: 2.30 l

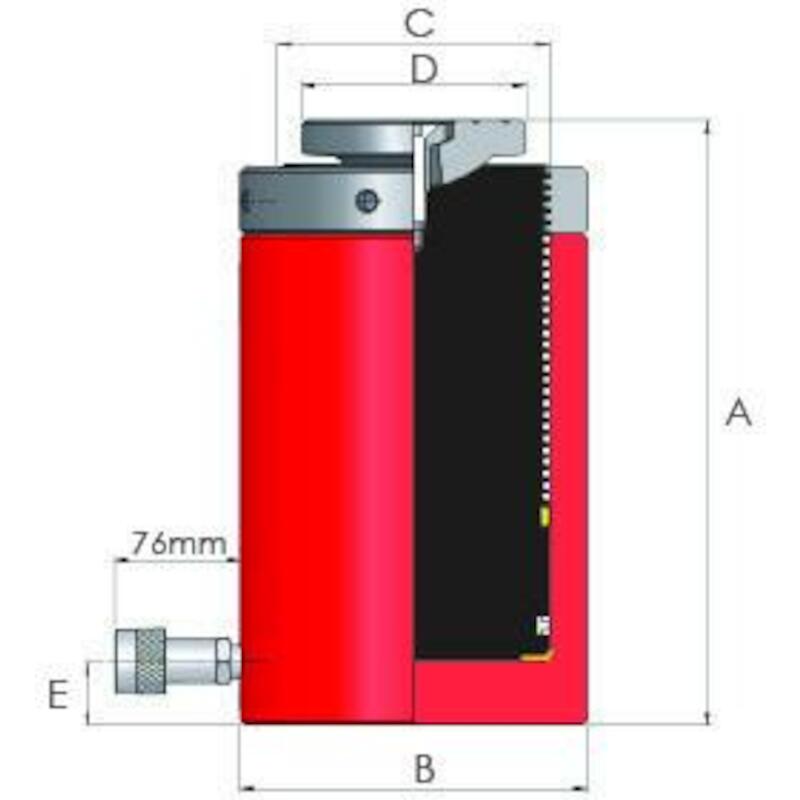

• Construction height: 311 mm
• Cylinder diameter: 178 mm
• Piston diameter: 140 mm
• Weight: 61.5 kg
