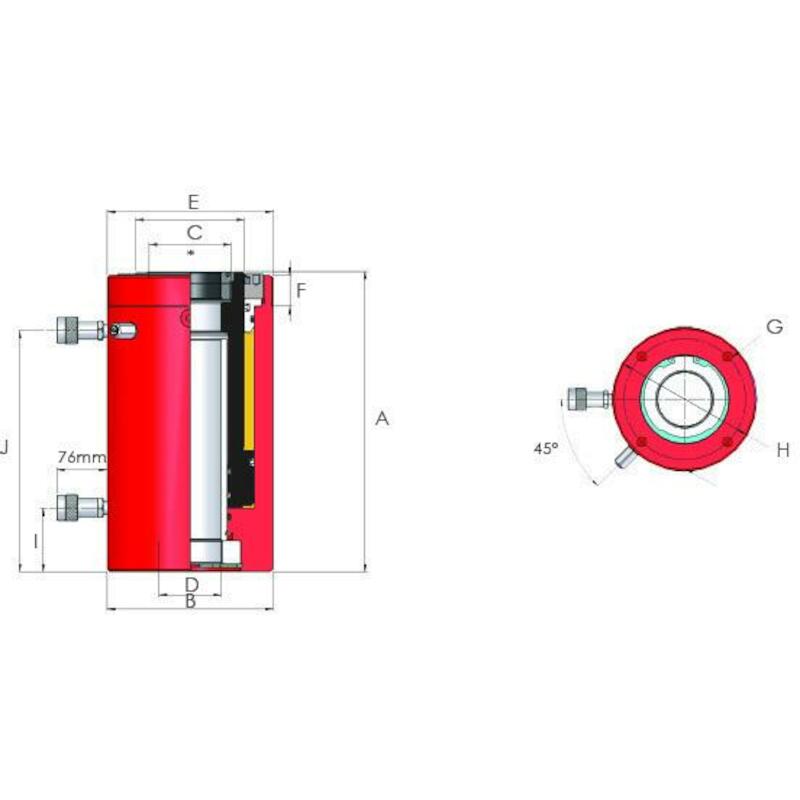

102 TONNE CAPACITY, DOUBLE ACTING, HOLLOW PISTON CYLINDER - HHR1006 - HI-FORCE

Product description

• Double-acting design for improved control
• Hollow plunger design for tooling, maintenance, and chucking applications
• Nitrocarbonised plunger for corrosion resistance
• Bearing surfaces with minimal friction
• Return side equipped with pressure relief valve
• Anti-extrusion seals for improved performance at high pressure
• Bearing thread suitable for full load
• Thrust force: 102 tonnes
• Traction force: 43 tonnes
• Stroke length: 152 mm
• Oil capacity: 2174 cm³
• Construction height: 381 mm
• Cylinder diameter: 213 mm
• Piston diameter: 140 mm
• Weight: 90 kg
• Piston inner diameter: 80 mm
• Connection plunger: 8.3/8"-12
• Max. working pressure: 700 bar
