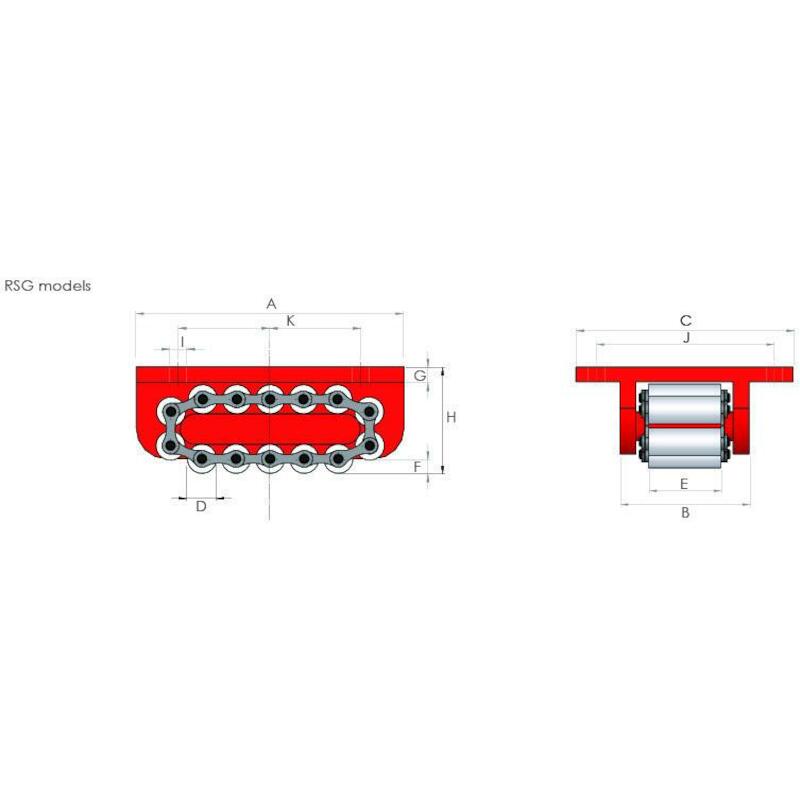

100 TONNES HEAVY DUTY SKATE WITH GROOVED SIDE - SINGLE ROLLER DESIGN - RSG100 - HI-FORCE

Product description

• Suitable for use over longer distances and/or permanent loads
• Groove guide in the central plate significantly reduces wear
• Optional fixing holes (standard on models RSG40 and RSG50)
• Maximum recommended travel speed 5 metres per minute
• Also suitable as fixed-mounted conveyor roller under the moving load
• Equipped with flat top plate
• Capacity: 100 tonnes
• Number of rollers in contact with ground surface is 8
• Total number of rollers on the skate is 21
• Geiwht: 109,0kg
• Overall length: 580 mm
• Width of support surface: 300 mm
• Height: 170 mm
