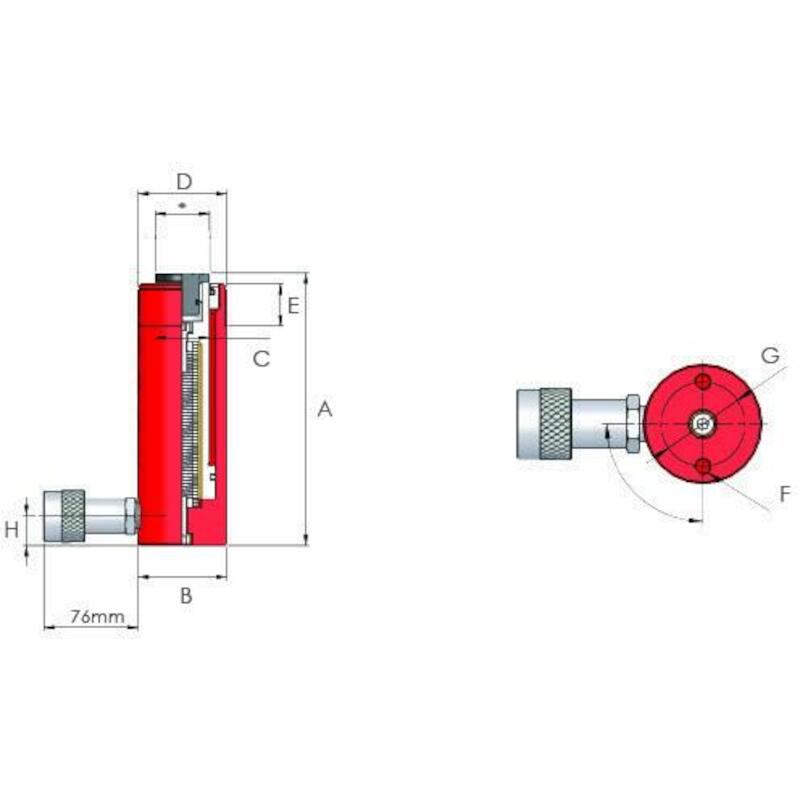

10 TONNE CAPACITY, SINGLE ACTING MULTI-PURPOSE CYLINDER - HSS102 - HI-FORCE
06002815
5056388008584
HI-FORCE
HSS102
57 mm
131 mm
10 t
56 mm
EA
In Stock: Available
6 day(s) lead time
Product description
- Single-acting, spring return
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Bearing thread suitable for full load
- Slotted saddles fitted as standard on all models
- Capacity: 10 tonnes
- Stroke length: 56 mm
- Oil capacity: 81 cm³
- Construction height: 131 mm
- Cylinder diameter: 57 mm
- Piston diameter: 35 mm
- Weight: 2.4 kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
