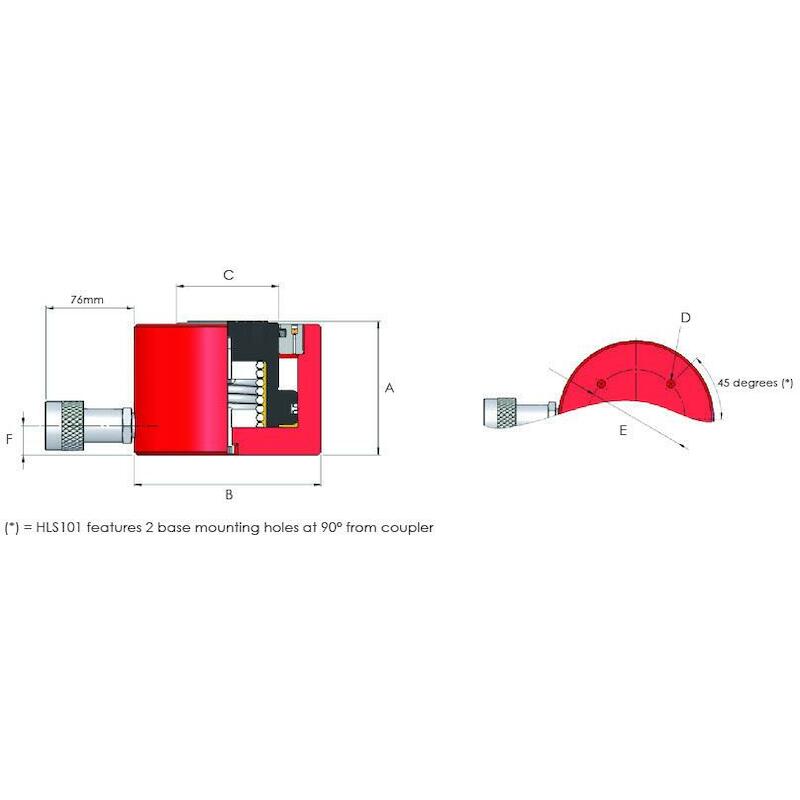

10 TONNE CAPACITY, SINGLE ACTING, LOW HEIGHT CYLINDER - HLS101 - HI-FORCE
06002639
5056388007112
HI-FORCE
HLS101
70 mm
95 mm
10 t
40 mm
EA
In Stock: Available
6 day(s) lead time
Product description
- Single-acting, spring return
- Compact design with optimum stroke lengths
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction F
- Anti-extrusion seals for improved performance at high pressure
- Capacity: 10 tonnes
- Stroke length: 40 mm
- Oil capacity: 58 cm³
- Cylinder diameter: 70 mm
- Piston diameter: 38 mm
- Weight: 2.4 kg
- Construction height: 95 mm
- Max. working pressure: 700 bar
- Complete with quick-release coupling
